MIL-DTL-27434-13 Adapter, Connector, Coaxial, Radiofrequency, Between Series, Type Ug-497A/U \(Series Hn To Lc\)

Pages 1 - 2 - 3

MIL-DTL-27434/13A

Inches

millimeters

.001

0.02

.188

4.77

1.281

32.53

NOTES:

1. All dimensions are in inches.

2. Unless otherwise specified, tolerances are +/- 0.005 inch.

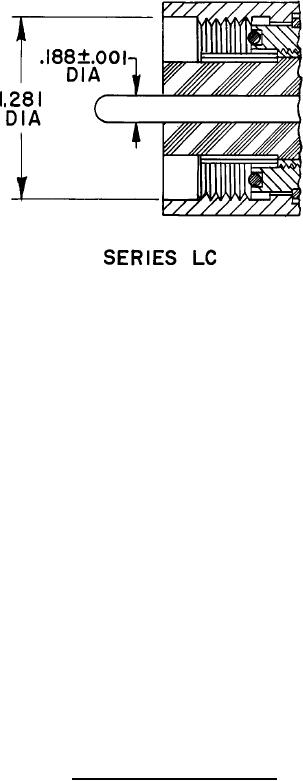

FIGURE 2. Series LC pin contact interface.
