INCH - POUND
MIL-DTL-3607/2B
24 July 2013
SUPERSEDING
MIL-C-3607/2A
2 August 1963
DETAIL SPECIFICATION SHEET
CONNECTOR, PLUG, ELECTRICAL, SERIES PULSE, TYPE UG-36/U
This specification is approved for use by all Departments and
Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall
consist of this specification sheet and MIL-DTL-3607.
Inches
mm
2.0625
52.388
4.40625
111.919
NOTES
1. Dimensions are in inches.
2. Unless otherwise specified, tolerances are ±.005 on decimals.
3. Washer, REB1036-17, Cone, REA10013-1, and Contact, REB10507, shall have a silver plating of not
less than 0.0002 inch thick. All other metal parts shall be nickel-plated.
4. After assembling cable, fill void with insulating and sealing compound.
5. This item is a #10-32 UNF-2A x 1/8 long, brass set screw with plain point; two required.

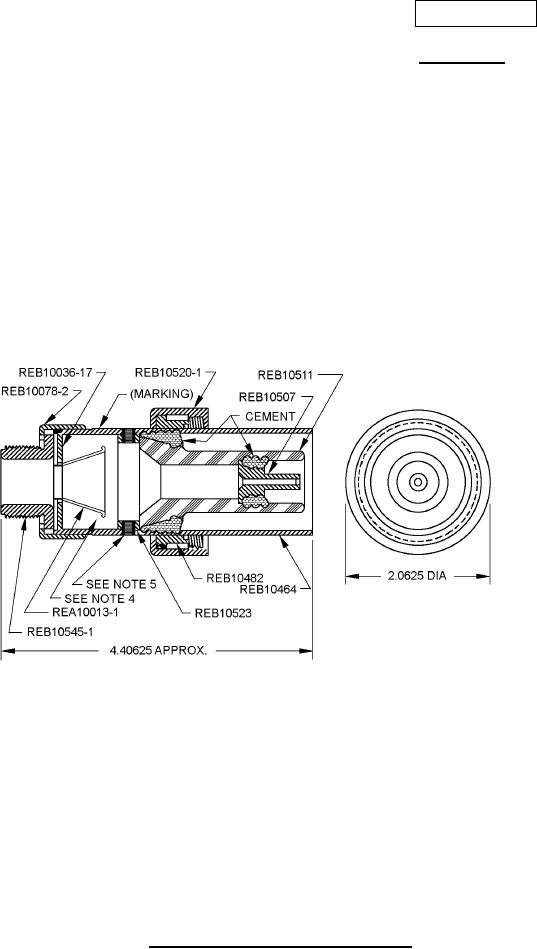

FIGURE 1. Type UG-36/U electrical plug connector.
AMSC N/A
FSC 5935
