MIL-DTL-55302-181 Connectors, Printed Circuit Subassembly And Accessories: 4 Row, Pin Assemblies, Right Angle, 100 Through 684 Contact Positions, For Printed Wiring Boards \(.100 Spacing\)

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15 - 16 - 17 - 18 - 19 - 20 - 21


MIL-DTL-55302/181C
NOTES:
1. Torque wrench must be used when fastening connector to printed circuit board.
2. Length to be determined by user.

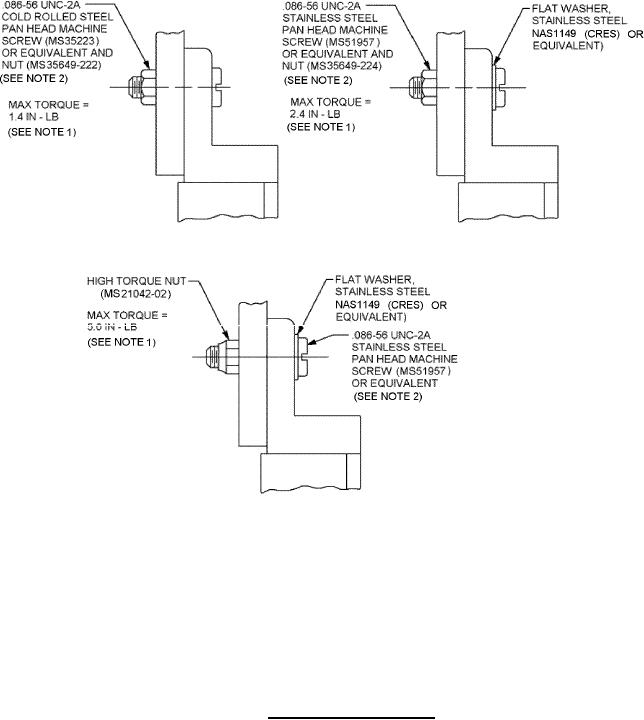

FIGURE 4. Mounting recommendations.
7
