INCH-POUND
W-C-596/1588
12 October 2012
SUPERSEDING W-C-596/158A
3 May 1988
FEDERAL SPECIFICATION SHEET
CONNECTOR, PLUG, ELECTRICAL, SPECIFIC PURPOSE, LOCKING, GROUNDING, 4 POLE, 5 WIRE, 30 AMPERES, 120/208 VOLTS, 3 PHASE Y, 400 HERTZ
Inactive for new design after 12 October 2012.
The General Services Administration has authorized the use of this federal specification, by all federal agencies.
The complete requirements for procuring connector described herein shall consist of this document and the latest issue in effect of W-C-596.

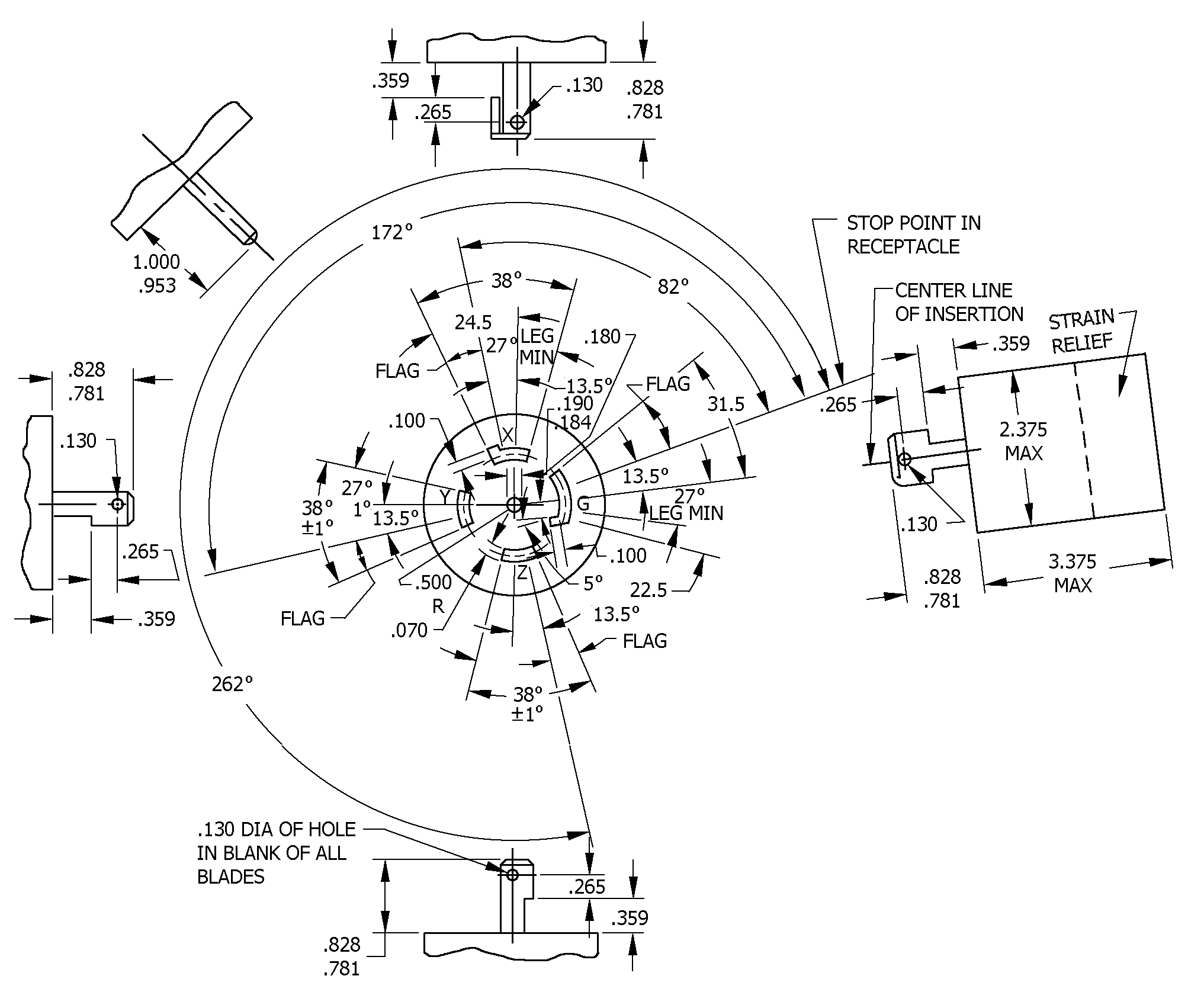

FIGURE 1. Configuration and dimensions.
AMSC N/A FSC 5935
