INCH-POUND
W-C-596/29C
20 July 2001
SUPERSEDING W-C-596/298
13 February 1980
FEDERAL SPECIFICATION SHEET
CONNECTOR, PLUG, ELECTRICAL, GENERAL PURPOSE, GENERAL GRADE,
4 POLE, 4 WIRE, 20 AMPERES, 3 PHASE WYE, 120/208 VOLTS, 50/60 HERTZ
The General Services Administration has authorized the use of this federal specification sheet by all federal agencies.
The complete requirements for procuring the connectors described herein shall consist of this document and the latest issue of W-C-596/GEN.
INACTIVE FOR NEW DESIGN
Inches mm
2.265 57.53
3.380 85.85
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Undimensioned pictorials are for reference purposes only.

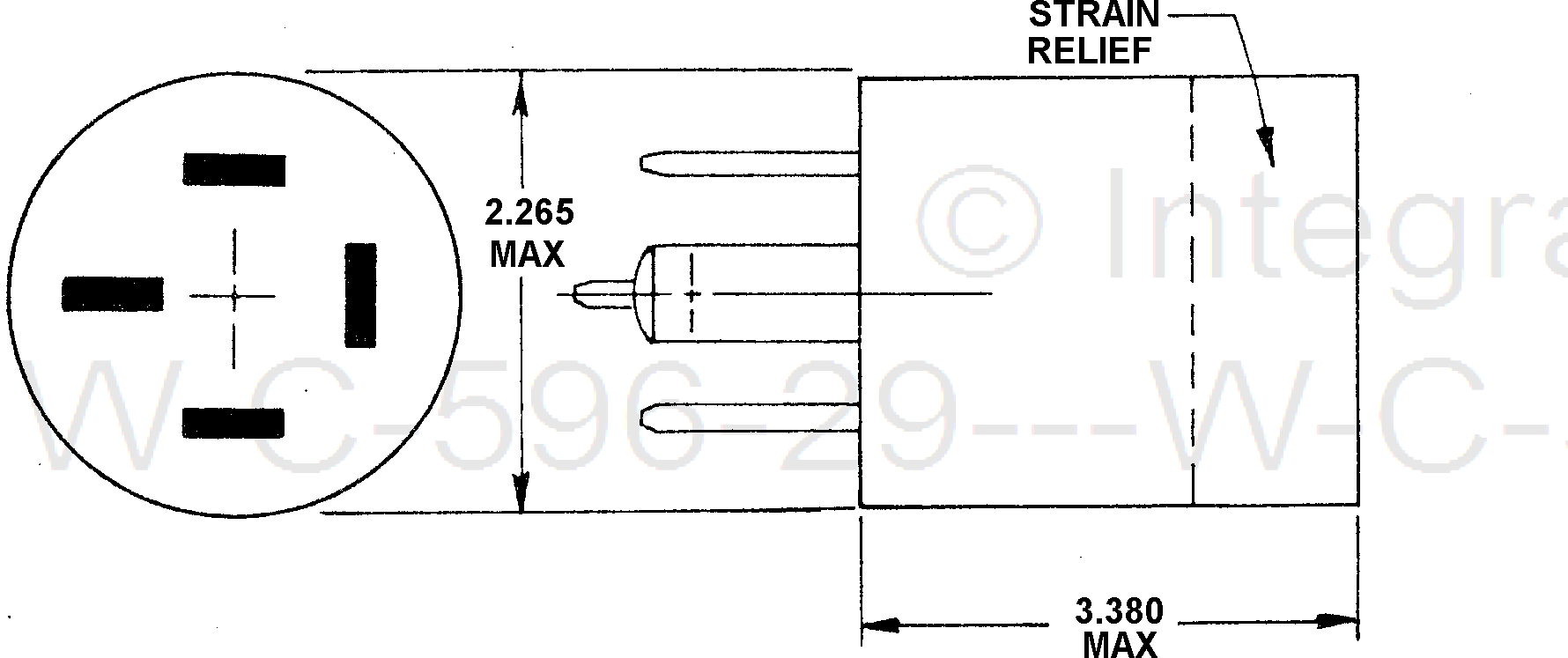

FIGURE 1. Configuration and dimensions.
AMSC N/A 1 of 3 FSC 5935
DISTRI8UTION STATEMENT A. Approved for public release; distribution is unlimited.
