INCH-POUND
W-C-596/30D
20 July 2001
SUPERSEDING W-C-596/30C
24 June 1983
FEDERAL SPECIFICATION SHEET
CONNECTOR, PLUG, ELECTRICAL, GENERAL PURPOSE, CABLE OUTLET, GENERAL GRADE, 4 POLE, 4 WIRE, 20 AMPERES, 3 PHASE WYE, 120/208 VOLTS, 50/60 HERTZ
The General Services Administration has authorized the use of this federal specification sheet by all federal agencies.
The complete requirements for procuring the connectors described herein shall consist of this document and the latest issue of W-C-596/GEN.
INACTIVE FOR NEW DESIGN
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Undimensioned pictorials are for reference purposes only.

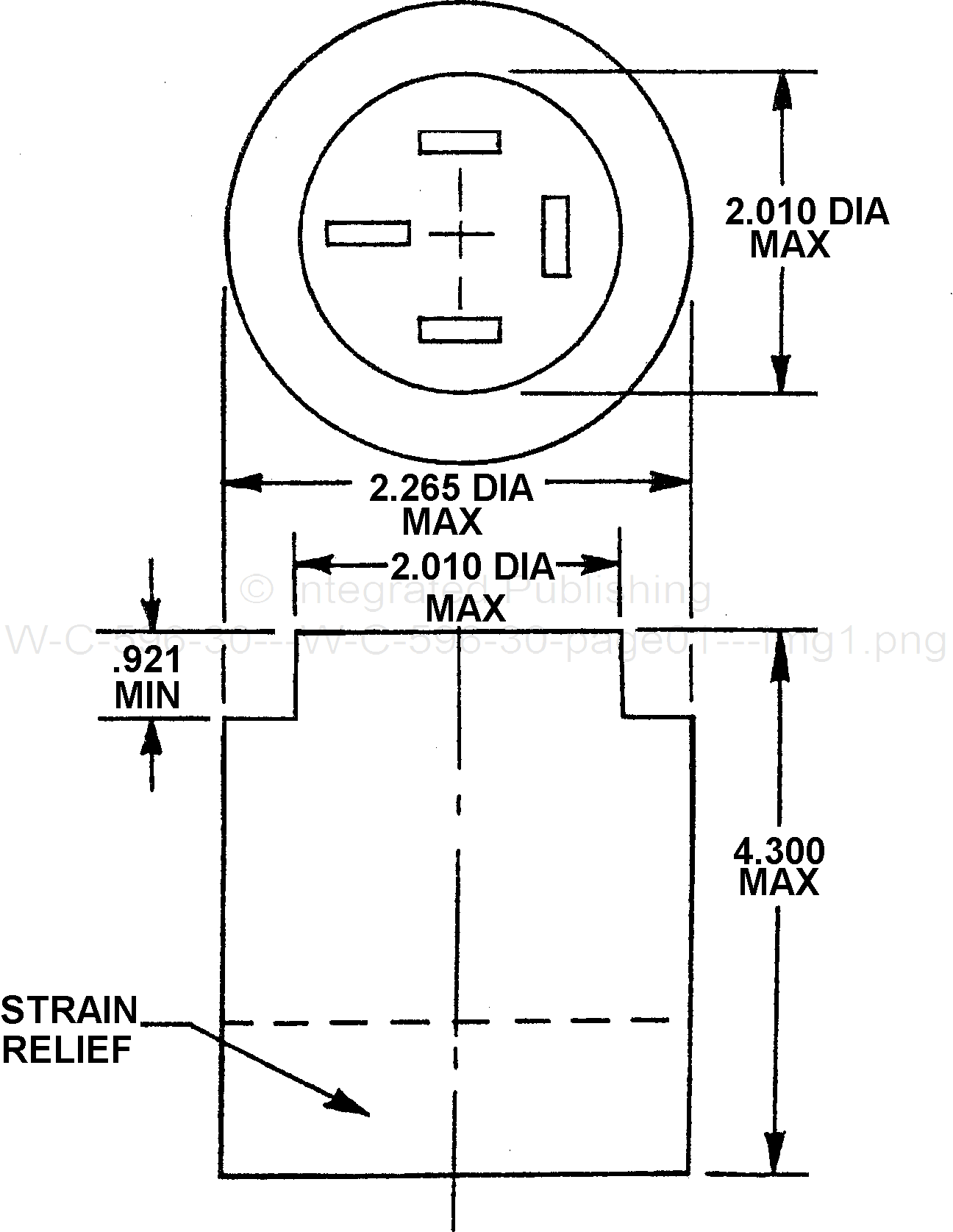

FIGURE 1. Configuration and dimensions.
