MIL-DTL-12520/10B
Inches
mm
.005
0.13
.016
0.41
1.98
.078
3.17
.125
4.77
.188
41.27
1.625
46.02
1.812
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for information only.
3. Unless otherwise specified, tolerances are ± .005 (0.13 mm).

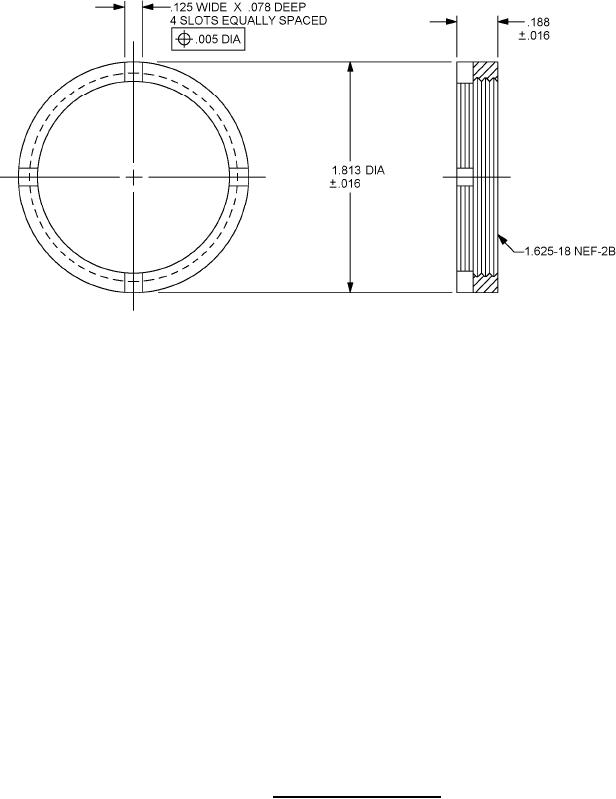

FIGURE 2. Mounting nut dimensions.
