MIL-DTL-12520/11B
Inches
mm
.005
0.13
.016
0.41
.078
1.98
.125
3.17
.188
4.77
1.625
41.27
1.812
46.02
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for information only.
3. Unless otherwise specified, tolerances are ± .006 (0.13 mm).

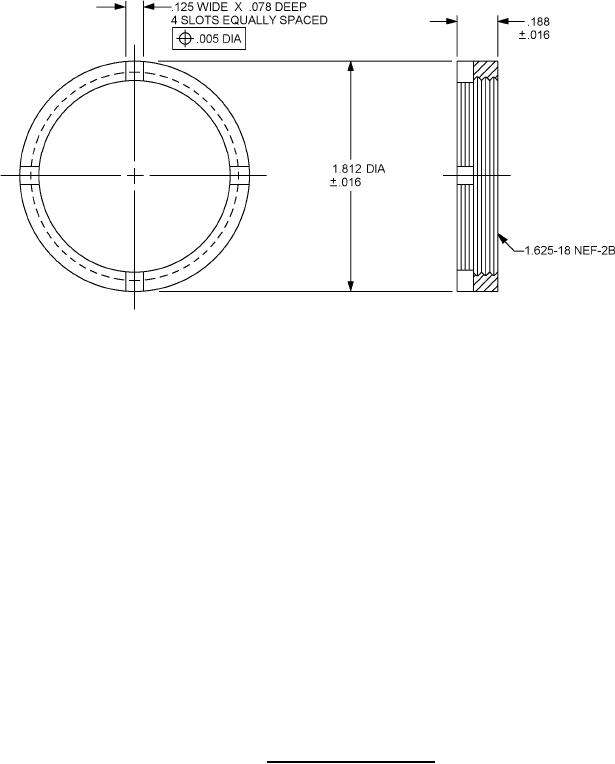

FIGURE 2. Mounting nut dimensions.
.
