MIL-DTL-12520/9B
Inches
mm
0.13
.005
0.20
.008
0.25
.010
0.41
.016
1.19
.047
1.78
.070
1.98
.078
4.44
.175
7.14
.281
7.92
.312
9.52
.375
11.05
.435
11.12
.438
12.50
.492
14.27
.562
24.90
.980
28.17
1.109
29.92
1.178
30.17
1.188
31.75
1.250
37.31
1.469
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for information only.
3. Unless otherwise specified, tolerances are ± .005 (0.13 mm).

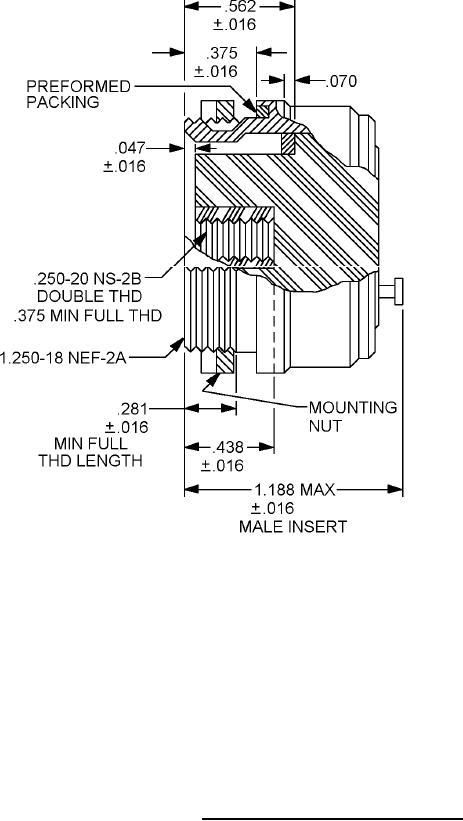

FIGURE 1. Receptacle shell and insert dimensions Continued.
