MIL-DTL-12883/3E

Mating-base dimensions: Sockets shall accommodate plug-in components having mating-base

dimensions as shown on figure 2.

Inches

.002

0.05

.005

0.13

.040

1.02

.187

4.75

.281

7.14

.468

11.89

NOTES:

1. Dimensions are in inches.

2. Metric equivalents are given for general information only.

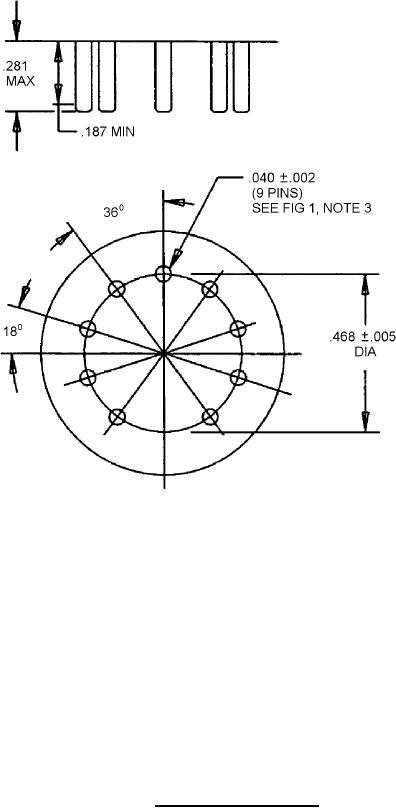

FIGURE 2. Mating-base dimensions.
