MIL-DTL-21097/11J
Dimensions
Dash
Size
number
K
L
M
N
08
2
.070 (1.78)
.122 (3.10)
.022 (0.56)
.042 (1.07)
.066 (1.68)
.118 (3.00)
.020 (0.51)
.036 (0.91)
09
3
.102 (2.59)
.154 (3.91)
.022 (0.56)
.042 (1.07)
.098 (2.49)
.150 (3.81)
.020 (0.51)
.036 (0.91)
10
4
.133 (3.38)
.185 (4.70)
.022 (0.56)
.042 (1.07)
.129 (3.28)
.181 (4.60)
.020 (0.51)
.036 (0.91)
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for information only.
3. Serrations are permitted in this area provided the outer extremities are within tolerance limits.
4. Polarizing key is for use with connectors in accordance with MIL-DTL-21097/21 types A and AD.
5. Material: Polyamide, type I, ASTM D4066; FED-STD-595, color 23690, or natural (clear).

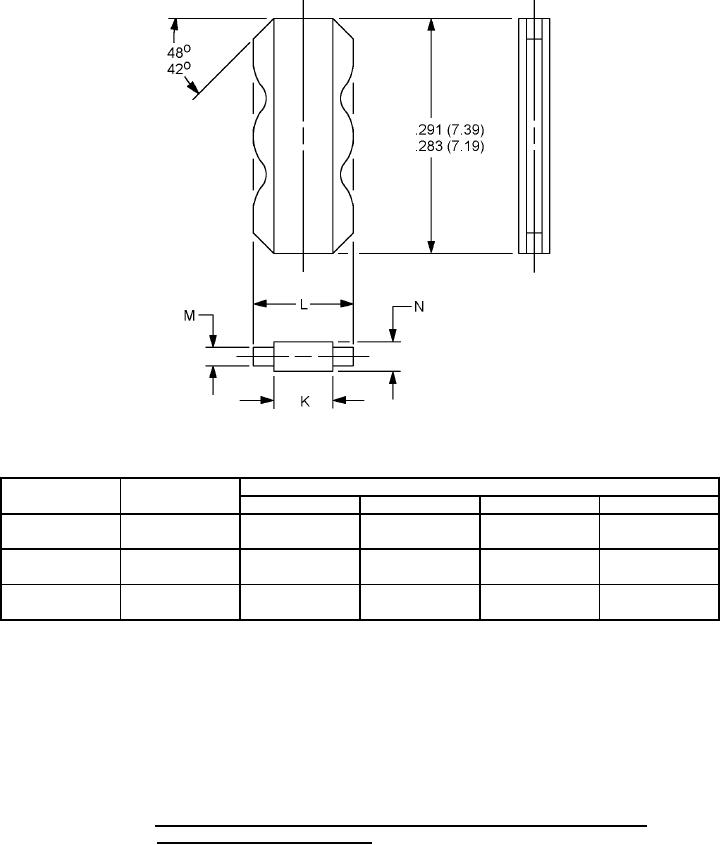

FIGURE 3. Polarizing key, between contact positions, for types A and AD connectors,
PIN M21097/11-08, -09 and 10.
4
