MIL-DTL-21097/15G
Printed wiring board
Size
T dim
2
.062 (1.57)
3
.093 (2.36)
4
.125 (3.18)
Inches
mm
.002
0.05
.050
1.27
.052
1.32
.093
2.36
.100
2.54
.200
5.08
.300
7.62
.350
8.89
.625
15.88
.895
22.73
4.731
120.17
NOTES:
1. Dimensions are in inches.
2. Unless otherwise specified, tolerance is ± .005 (.13 mm) for three-place decimals.
3. Metric equivalents are given for information only.
4. See table II for dimensions B and C.

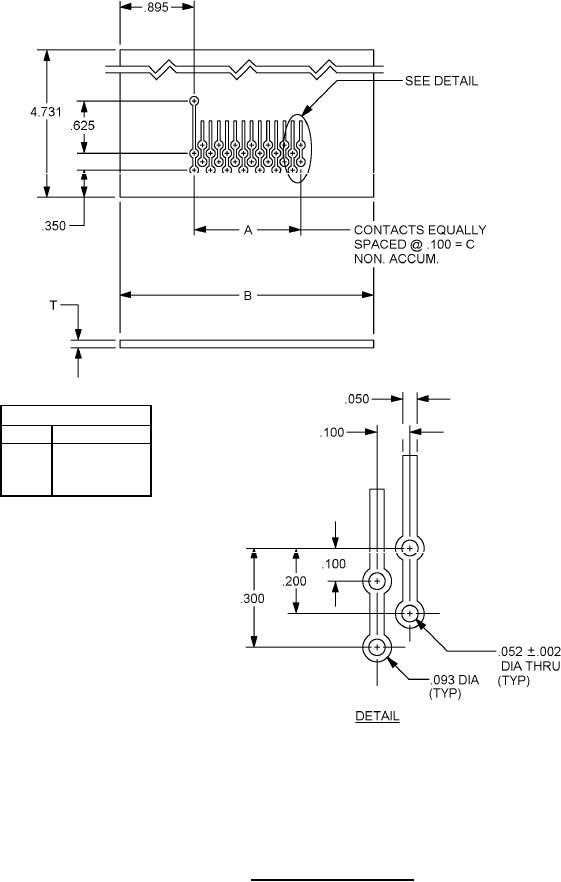

FIGURE 2. Printed wiring test board.
