INCH-POUND
MIL-DTL-21097/18D
18 August 2005
SUPERSEDING
MIL-C-21097/18C
10 October 1972
DETAIL SPECIFICATION SHEET
CONNECTORS, ELECTRICAL, PRINTED WIRING BOARD
TOOL, CONTACT, REMOVAL, FOR TYPE CR CONNECTOR CONTACTS
This specification is approved for use by all Departments and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification sheet and
MIL-DTL-21097.
Inches
mm
.010
.25
.030
.76
.050
1.27
.052
1.32
.062
1.57
.076
1.93
.109
2.77
.418
10.62
3.000
76.20
4.250
107.95
NOTES:
1. Dimensions are in inches.
2. Unless otherwise specified, tolerance is ± .005 (.13 mm) for three place decimals.
3. Metric equivalents are given for information only.

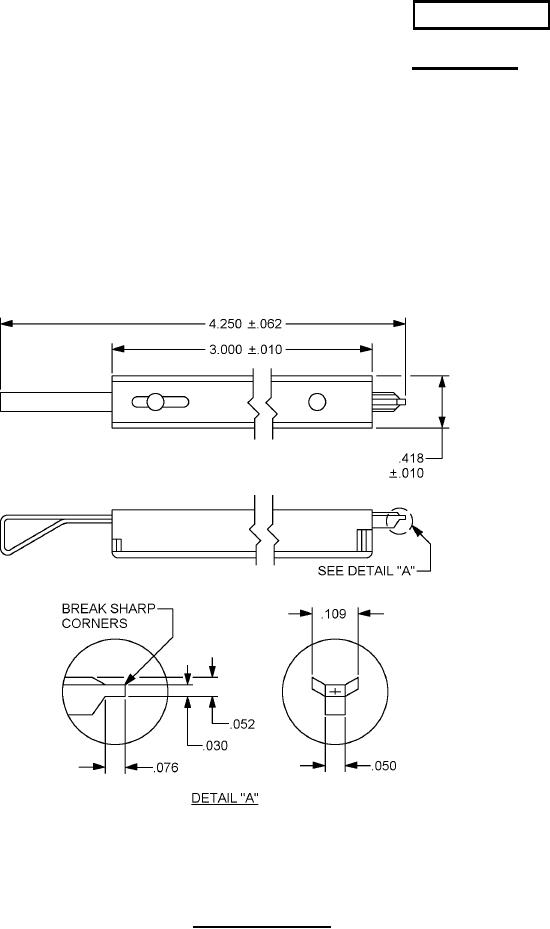

FIGURE 1. Contact removal tool.
AMSC N/A
FSC 5935
