MIL-DTL-21097/19D
Inches
mm
.000005
.00013
.00001
.0002
.005
.13
.100
2.54
.250
6.35
.266
6.76
.480
12.19
0
NOTES:
1. Dimensions are in inches.
2. Unless otherwise specified, tolerance is ± .005 (.13 mm) for three place decimals.
3. Metric equivalents are given for information only

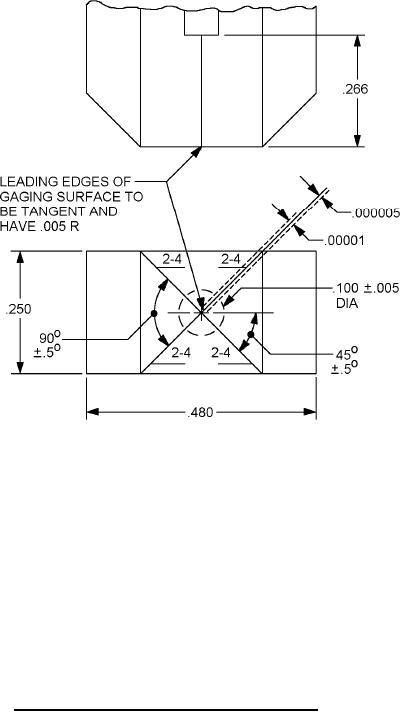

FIGURE 2. Gage tip, test fixture, contact separation force.
