MIL-DTL-24231/13E(SH)
4
3
5
2
6
9
1
7
8
ASSEMBLY, INSERT, MOLDED M24231/13-040 SAME AS M24231/13-020
EXCEPT AS SHOWN. PIN CONFIGURATION SAME AS M24231/9-020.
CONNECTION SHALL BE ACCORDANCE WITH ORDERING DATA.
9

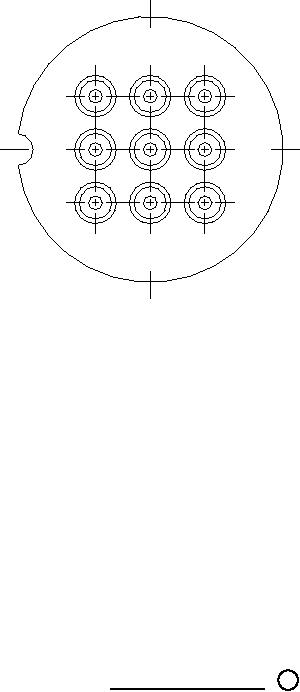

FIGURE 5. Assembly, insert, molded.
