MIL-DTL-24308/30 Connectors, Electric, Rectangular, Miniature, Combination Insert Arrangement, Receptacle, Socket Contacts, Shell Size 1, Size 20 Signal Contacts and Size 8 Power and Shielded, Class G, M, N and D

1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13


MIL-DTL-24308/30

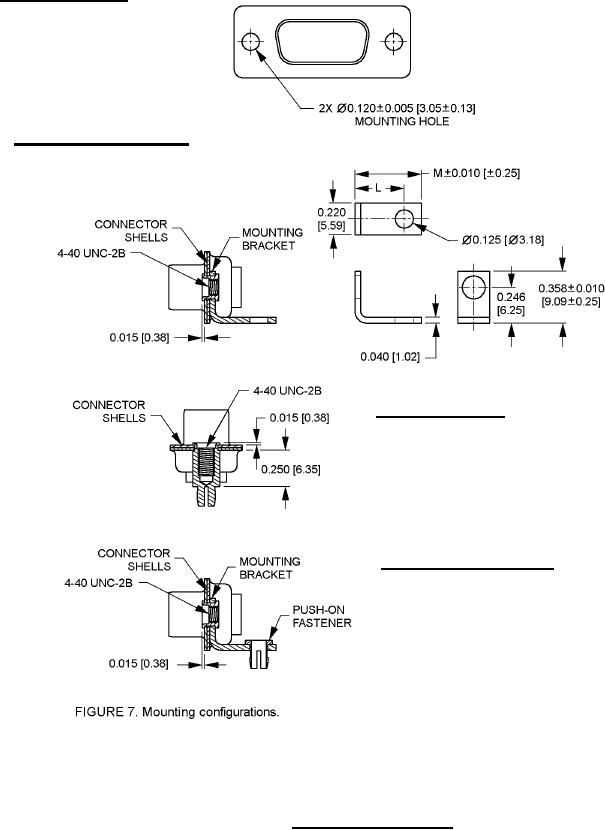

CONFIGURATION A:
Ø .120 (3.05 mm) mounting
hole, straight termination
connectors
CONFIGURATION B AND C:
Mounting bracket and threaded rivet,
right angle termination connectors
CONFIGURATION D:
Swaged spacer with push on
fastener, straight termination
connectors
CONFIGURATION E AND F:
Mounting bracket and threaded rivet
with push on fastener, right angle termination
connectors
FIGURE 5. Mounting configurations.
8
