MIL-DTL-24308/33 Connectors, Electric, Rectangular, Miniature, Combination Insert Arrangement, Plug, Pin Contacts, Shell Size 3, Size 20 Signal Contacts and Size 8 Power and Shielded, Class G, M, N and D

1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15 - 16 - 17 - 18 - 19 - 20 - 21 - 22 - 23


MIL-DTL-24308/33
M24308/33-401, -402, -407, -408
M24308/33-403, -404, -405, -406, -409, -410, -411, -412
21W1

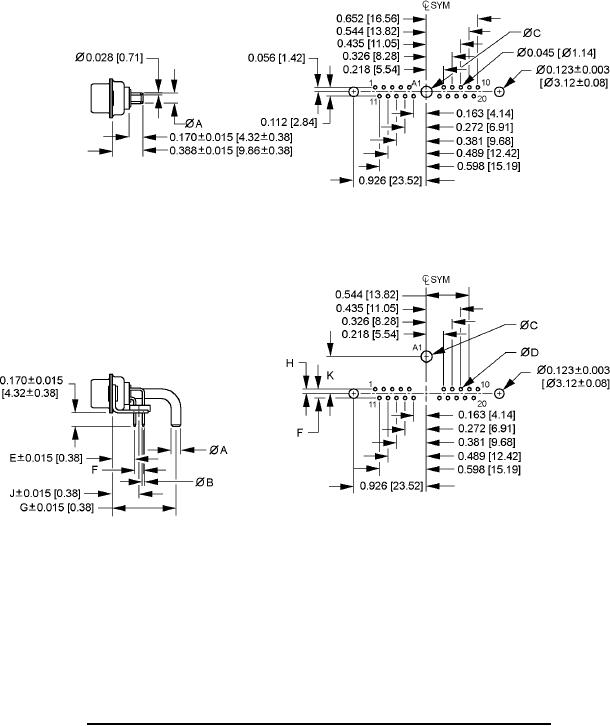

FIGURE 3. Termination dimensions and layout arrangement for, power connector - Continued.
7
