MIL-DTL-24308/38 Connectors, Electric, Rectangular, Miniature, Combination Insert Arrangement, Plug, Socket Contacts, Shell Size 5, Size 20 Signal Contacts and Size 8 Power and Shielded, Class G, M, N and D

1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15 - 16 - 17 - 18 - 19 - 20


MIL-DTL-24308/38
M24308/38-213, -214
M24308/38-215, -216
43W2

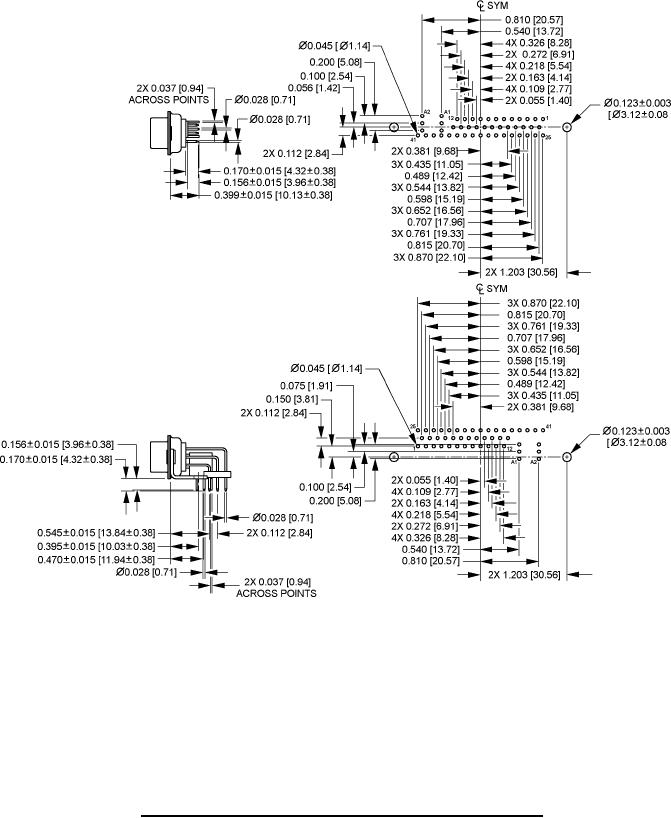

FIGURE 4. Terminations and layout arrangement for shielded connector _ Continued.
