MIL-DTL-2726/11C
Inches
mm
Inches
mm
.001
0.02
.562
14.27
.005
0.13
.750
19.07
.016
0.41
.938
23.82
.031
0.79
1.109
27.79
.062
1.57
1.693
43.00
.125
3.17
1.695
43.05
.203
5.16
1.938
49.22
.281
7.14
2.000
50.80
.406
10.31
3.000
76.20
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for information only.
3. Unless otherwise specified, tolerances are ± .016 (0.41mm) and ± .5° on angles.
4. Supersedes: Drawing 9000-S6202-73882, pc. 51, symbol 1141.
5. Part or Identifying Number (PIN) M2726/11-001.

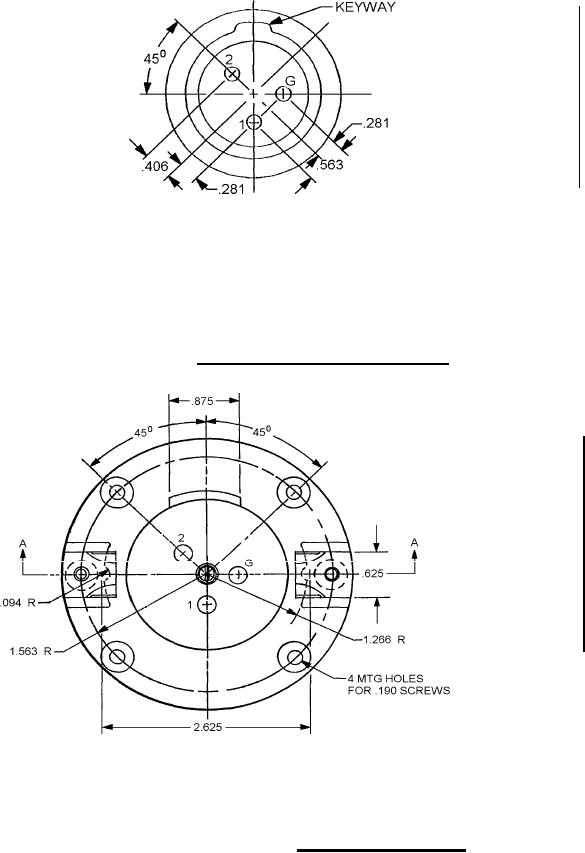

FIGURE 1. Receptacle (metal housing and shell) - Continued.
Inches
mm
Inches
mm
.875
0.13
22.22
.005
1.094
1.98
27.79
.078
1.266
2.39
32.16
.094
1.297
3.17
.125
32.94
1.562
3.58
39.67
.141
1.691
4.77
.188
42.95
1.695
4.83
.190
43.05
1.927
14.27
.562
48.95
15.87
1.947
.625
49.45
17.47
2.625
.688
66.67
3.625
90.07
Symbol no. 1141.2
FIGURE 2. Receptacle (plastic body).
2
