MIL-DTL-2726/13E
Inches
mm
.005
0.13
.093
2.36
.094
2.39
.109
2.77
.119
3.02
.156
3.96
.178
4.52
.306
7.77
1.031
26.19
1.036
26.31
1.906
48.41
55.57
2.188
60.32
2.375
62.69
2.468
63.50
2.500
66.67
2.625
71.42
2.812
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for information only.
3. Unless otherwise specified, tolerances are ± .016 (0.41mm) and ± .5° on angles.
4. Supersedes: Drawing 9000-S6202-73882, Pc 19, symbol 1142.
5. Safety cable: .031 inch 3x7 stainless steel, aircraft cable, black vinyl covering to .062 inch OD or
equal and wire terminal, barrel to suit OD of plastic covered wire. Crimp on both ends of wire,
length 6 and 10 inches.
6. Radii: .109 detent of cap and of plug retainer.

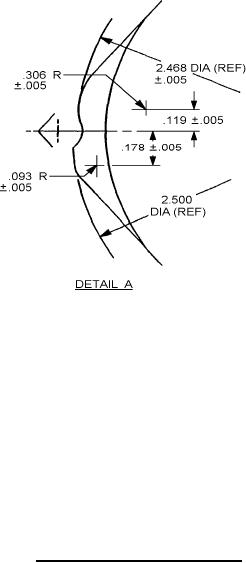

FIGURE 1. Dimensions and configurations - Continued.
REQUIREMENTS
Dimensions and configurations: See figure 1.
Materials: Cap polyamide (nylon).
Design: As shown on the figure or may be a multipiece design.
Insert: Brass, commercial (COML).
Intended use: Maintains degree of enclosure when plug is removed in any application
using receptacles MIL-DTL-2726/7, /8, /9, /11, /12 and enclosed
receptacles MIL-DTL-2726/14, /15, /16, /17, /18, /21, /22, /23, /24, /25, /26, /27,
/28, /29, /31, /33, /34, /35, /36, /37, /38, /39, /40, /42, /44, /45, /46, /47, and /49.
2
