MIL-DTL-2726/28B
Inches
mm
0.13
.005
1.57
.062
2.36
.093
4.77
.188
6.35
.250
8.74
.344
9.52
.375
30.17
1.188
38.10
1.500
74.62
1.875
66.67
2.625
73.02
2.875
95.25
3.750
107.95
4.250
171.45
6.750
250.82
9.875
10.750
273.05
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for information only.
3. Unless otherwise specified, tolerances are ± .016 (0.41mm) and ± .5° on angles.

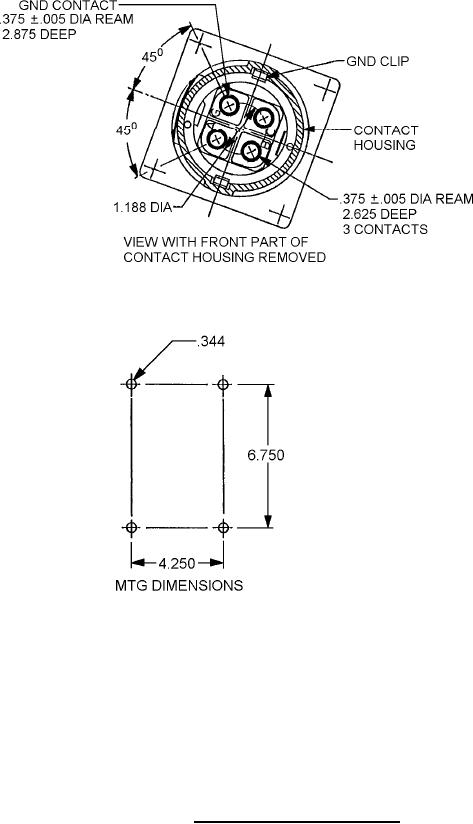

FIGURE 1. Dimensions and configurations - Continued.
