MIL-DTL-2726/29B
Inches
mm
.005
0.13
2.39
.094
.125
3.17
.357
9.07
.375
9.52
1.312
33.32
2.357
59.87
2.812
71.42
3.438
87.32
3.500
88.90
3.750
95.25
NOTES:
4.125
104.77
1. Dimensions are in inches.
10.250
260.35
2. Metric equivalents are given for information only.
3. Unless otherwise specified, tolerances are ± .016 (0.41mm) and ± .5° on angles.

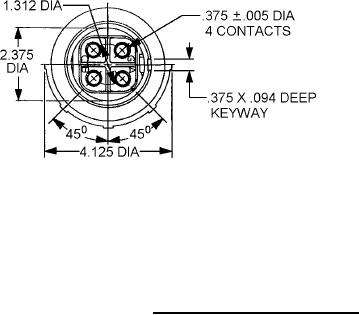

FIGURE 1. Dimensions and configurations - Continued.
REQUIREMENTS
Dimensions and configuration: See figure 1.
Contact resistance: When tested as specified in accordance with MIL-DTL-2726, the voltage drop
shall not exceed 100 millivolts. Measured between the ends of two 24-inch
lengths of test cable properly connected to a test receptacle and the plug,
respectively.
Effectiveness of enclosure: Watertight in accordance with MIL-STD-108 when coupled with mating
receptacle.
Strain relief: 40 pounds.
Contact hardness: Minimum of Rockwell 45B.
Mating receptacle: MIL-DTL-2726/28, Part or Identifying Number (PIN) M2726/28-001.
Test cable: Commercial, 4 conductor, size 1 (133 X 22), 600 volt, type W.
Design: Enclosed terminal barriers shall be provided.
PIN: M2726/29-001.
Electrical rating: 100-ampere, 450-volt, alternating current, 60-hertz.
Verification
Verification shall be as specified in MIL-DTL-2726 and table I herein. The first article and
conformance inspections shall consist of the inspections as specified in table I, in the order shown.
2
