INCH-POUND
MIL-DTL-2726/33C
01 November 2006
SUPERSEDING
MIL-R-2726/33B(SH)
3 July 1986
DETAIL SPECIFICATION SHEET
RECEPTACLE, PLUG, ELECTRICAL, 40-AMPERE, 125-VOLT, SINGLE POLE,
MALE (SYMBOL NO. 1214.2 RED; SYMBOL NO. 1214.5 - BLACK)
Inactive for new design after 28 June 1999.
This specification is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this
specification sheet and MIL-DTL-2726.
Inches
mm
.031
.79
.248
6.39
.250
6.35
.938
23.82
1.000
25.40
1.031
26.19
1.062
26.97
3.625
92.07
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for information only.
3. Unless otherwise specified, tolerances are ± .016 (0.41mm).
4. Supersedes: Drawing 9000-S6202-73339, symbol 1214.

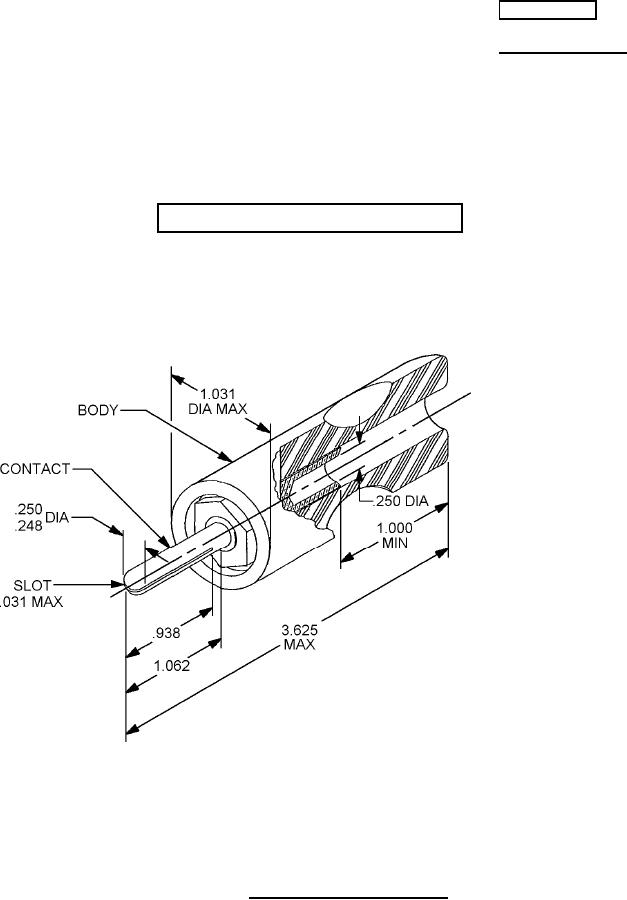

FIGURE 1. Dimensions and configuration.
AMSC N/A
FSC 5935
