MIL-DTL-2726/41B
Inches
mm
.357
9.07
2.812
71.42
4.250
107.95
6.125
115.57
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for information only.
3. Unless otherwise specified, tolerances are ± .016 (0.41mm) and ± .5° on angle.
4. Supersedes: Drawing 815-1197127, symbol 1098.

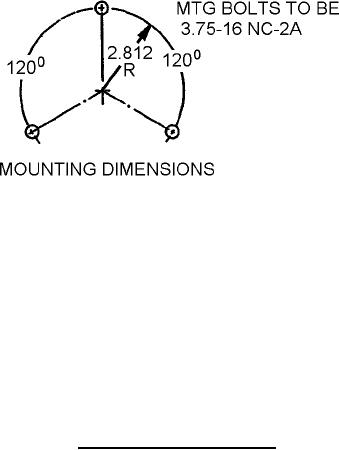

FIGURE 1. Dimensions and configuration - Continued.
REQUIREMENTS:
Dimensions and configuration: See figure 1.
Enclosure assembly: In accordance with MIL-E-24142/5, part number M24142/5-002.
Effectiveness of enclosure: Watertight in accordance with MIL-STD-108.
Receptacle: MS3102E-20-22S in accordance with MS3102 and MIL-DTL-5015.
Stuffing tube part number M19622/1-005 shall be furnished with the receptacle enclosure.
Part number: M2726/41-001.
Cap: In accordance with MS25043-20C.
Electrical rating: 15-ampere, 125-volt, alternating current, 60-hertz.
Mating plug: Bendix 10-72820-3P or equivalent (angle 90 degrees) (not furnished).
2
