MIL-DTL-2726/45C
Inches
mm
.500
12.70
1.250
31.75
1.750
44.45
2.000
50.80
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for information only.
3. Unless otherwise specified, tolerances are ± .031 (0.79mm).
4. Supersedes: Drawing 9000-S6202-73316, symbol 772.

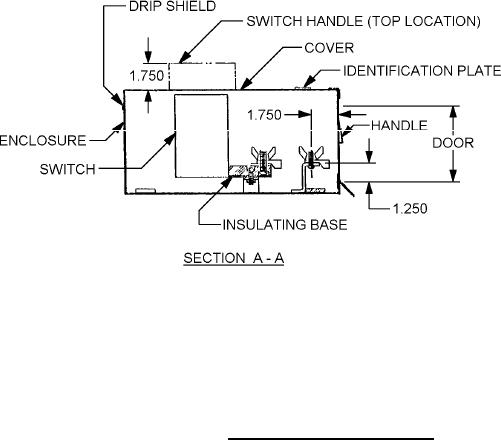

FIGURE 1. Dimensions and configurations - Continued.
REQUIREMENTS
Dimensions and configurations: See figure 1.
Enclosure: Shall be of steel and nonwatertight. Size of door shall be the maximum practicable, and it
shall open a minimum of 100 degrees. Cover shall be hinged at bottom of enclosure if
switch handle is located on cover. Cover shall be hinged at side of enclosure if switch
handle is located at side of enclosure.
Switch: Switch shall be of a rating specified herein: Cover shall interlock with switch operating
handle to prevent connection terminals from being energized when the cover is open.
Cable lugs: One cable lug for 23 MCM cable (Burndy Hylug, catalog number YAV8C-L1, or equal)
and two cable lugs for 23 MCM cable (Burndy Hylug, catalog number YAV8C-L3, or
equal) shall be furnished with the outlet. If cable lugs of a larger size are required, the
size and type shall be specified in the contract or order.
Part or Identifying Number (PIN): M2726/45-001.
Electrical rating: 100-ampere, 125-volt, 60-ampere, 250-volt.
