MIL-DTL-2726/47B
Inches
mm
.281
7.14
.313
7.94
.314
7.98
.359
9.13
.406
10.32
.500
12.70
.594
15.08
.625
15.88
.719
18.26
.813
20.64
1.031
26.19
1.844
46.83
2.250
57.15
3.000
76.20
4.625 117.5
NOTES:
1. Dimensions are in inches.
2. Unless otherwise specified, tolerances are ± .016 inch (0.41mm).
3. Metric equivalents are given for general information only.
4. Angular tolerance is ± 0.5°.
5. Supersedes Drawing 9000-S6202-74026, symbol 735.1.

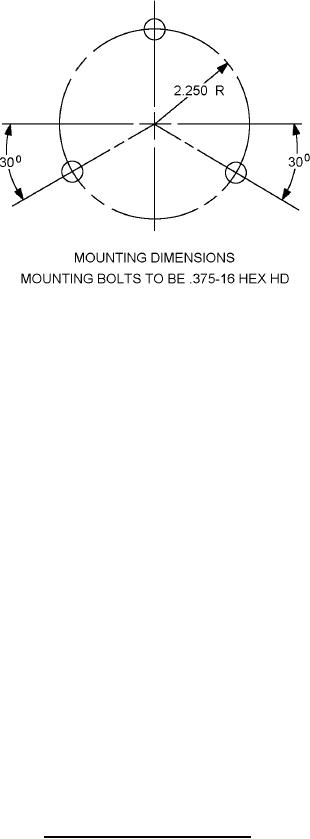

FIGURE 1. Dimensions and configurations Continued.
