MIL-DTL-2726/53B
Inches
mm
0.79
.031
2.39
.094
16.66
.656
19.05
.750
24.21
.953
1.125
28.58
1.500
38.10
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for information only.
3. Unless otherwise specified, tolerances are ± .010 (0.25mm) per linear inch, whichever is greater.
4. Angular dimensions are ± 0°30'.
5. Threads as specified in FED-STD-H28/2.
6. Marking Part or Identifying Number (PIN): M19622/10-0003 tube size and manufacturer's logo or
name in .125 inch high raised letters on face of cup (see MIL-S-19622).

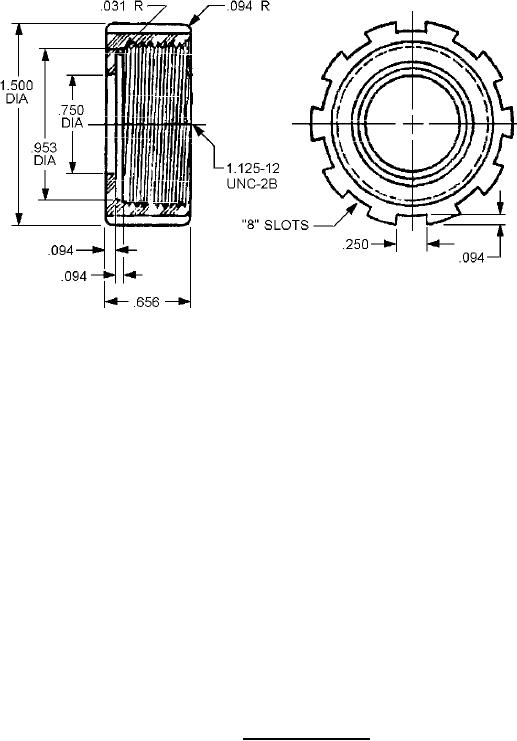

FIGURE 2. Plug insulation cap.
4
