INCH-POUND
MIL-DTL-2726/7B
14 February 2006
SUPERSEDING
MIL-R-2726/7A(SH)
3 July 1986
DETAIL SPECIFICATION SHEET
RECEPTACLE, ELECTRICAL, 2-PIN, 40-AMPERE,
125-VOLT, DIRECT CURRENT (SYMBOL NOS. 756.1 AND 756.2)
Inactive for new design after 28 June 1999.
This specification is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this
specification sheet and MIL-DTL-2726.
Inches
mm
.001
0.02
.016
0.41
.031
0.79
.062
1.57
.125
3.17
.203
5.16
.406
10.31
.750
19.05
.938
23.82
1.109
28.17
1.693
43.00
1.938
49.22
2.000
50.80
3.000
76.20
SH 9077
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for information only.
3. Unless otherwise specified, tolerances are ± .016 (0.41mm) and ± .5° on angles.
4. Supersedes: Drawing 9000-S6202-73882, pc 7, symbol 756.

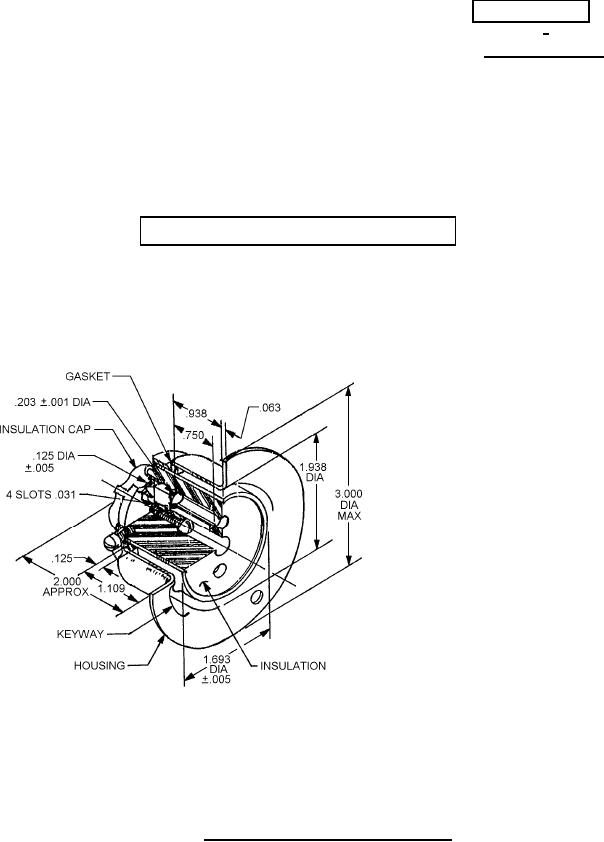

FIGURE 1. Receptacle (metal housing and shell).
AMSC N/A
FSC 5935
