INCH-POUND
MIL-DTL-2726/9B
14 February 2006
SUPERSEDING
MIL-R-2726/9A(SH)
3 July 1986
DETAIL SPECIFICATION SHEET
RECEPTACLE, ELECTRICAL, 4 - PIN GROUNDED, 40 - AMPERE, 450 - VOLT,
ALTERNATING CURRENT (SYMBOL NOS. 758.1 AND 758.2)
Inactive for new design after 28 June 1999.
This specification is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this
specification sheet and MIL-DTL-2726.
Inches
mm
.001
0.02
.005
0.13
.016
0.41
.031
0.79
.062
1.57
.125
3.17
.203
5.16
.562
14.27
.750
19.05
.938
23.82
1.109
28.17
43.00
1.693
49.22
1.938
50.80
2.000
76.20
3.000
SH 9081
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for information only.
3. Unless otherwise specified, tolerances are ± .016 (0.41mm) and ± .5° on angles.
4. Supersedes: Drawing 9000-S6202-73882, pc 9, symbol 758.

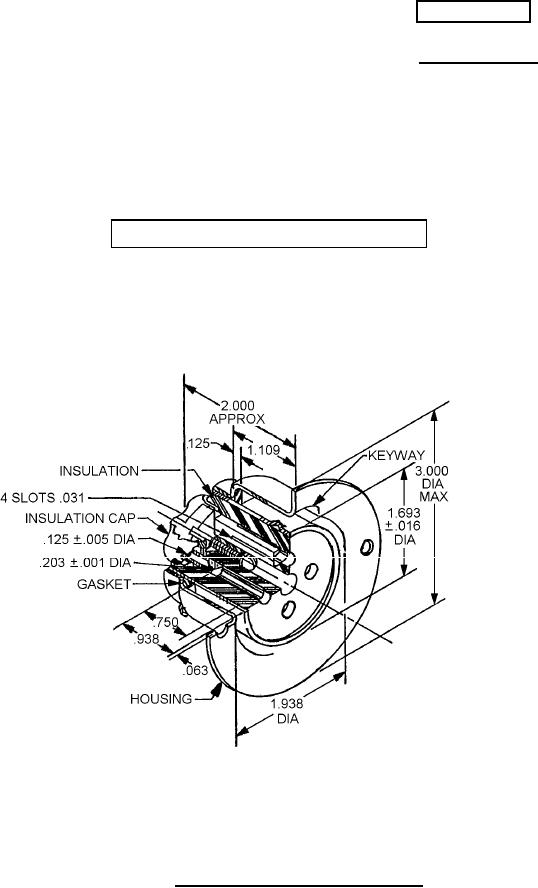

FIGURE 1. Receptacle (metal housing and shell).
AMSC N/A
FSC 5935
