INCH-POUND
MIL-DTL-27434/10B
26 May 2009
SUPERSEDING
MIL-DTL-27434/10A
30 October 2008
DETAIL SPECIFICATION SHEET
ADAPTER, CONNECTOR, COAXIAL, RADIOFREQUENCY,
BETWEEN SERIES, SERIES LC, SOCKET CONTACT, TO SERIES N, SOCKET CONTACT,
FLANGE MOUNT, TYPE UG271A/U
INACTIVE FOR NEW DESIGN
AFTER 19 FEBRUARY 1982
This specification is approved for use by all Departments
and Agencies of the Department of Defense
The requirements for acquiring the product described herein shall
consist of this specification sheet and MIL-DTL-27434.
Inches
mm
Inches
mm
.005
0.13
1.187
30.15
.196
4.99
1.562
39.67
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for information only.
3. Unless otherwise specified dimensional tolerances are ±.005 inches.

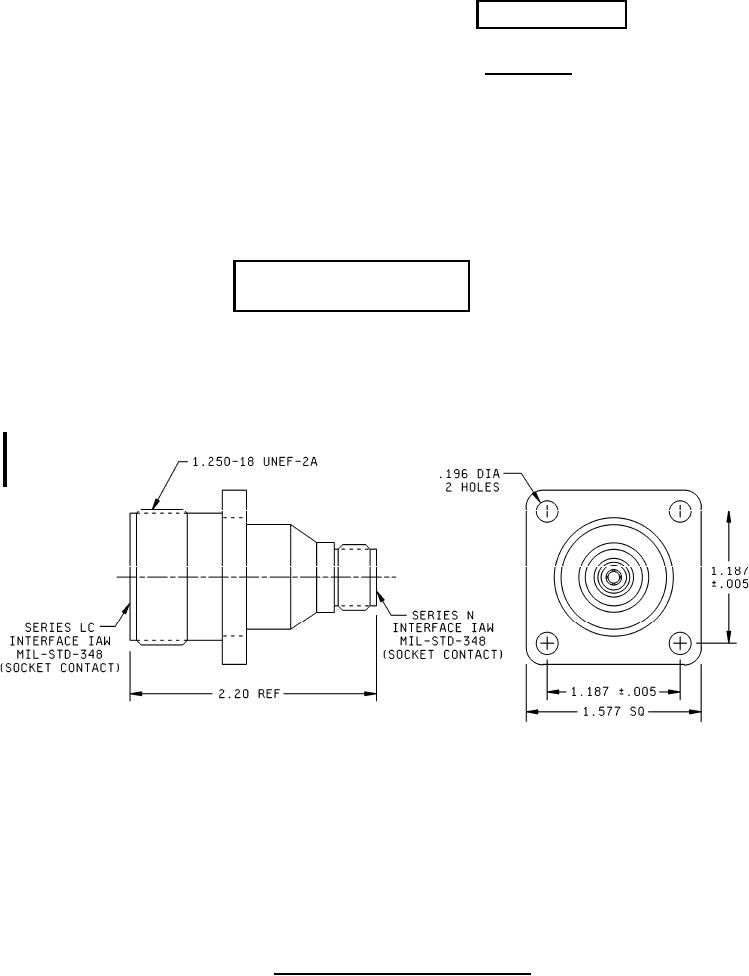

FIGURE 1. Type UG 271 A/U connector adapter.
AMSC N/A
FSC 5935
