INCH-POUND
MIL-DTL-27434/21A
22 May 2008
SUPERSEDING
MIL-A-27434/21
28 September 1960
DETAIL SPECIFICATION SHEET
ADAPTER, CONNECTOR, COAXIAL, RADIOFREQUENCY,
BETWEEN SERIES, SERIES BNC to SERIES SM
TYPE UG-691/U
Inactive for new design after
19 February 1982
This specification is approved for use by all Departments
and Agencies of the Department of Defense
The requirements for acquiring the product described herein
shall consist of this specification sheet and MIL-DTL-27434.
Inches
mm
Inches mm
.184 4.67
.001
0.03
.205 5.21
.002
0.05
.320 8.13
.003
0.08
.015
0.38
.515 13.08
.038
0.97
.595 15.11
.147
3.73
1.094 27.79

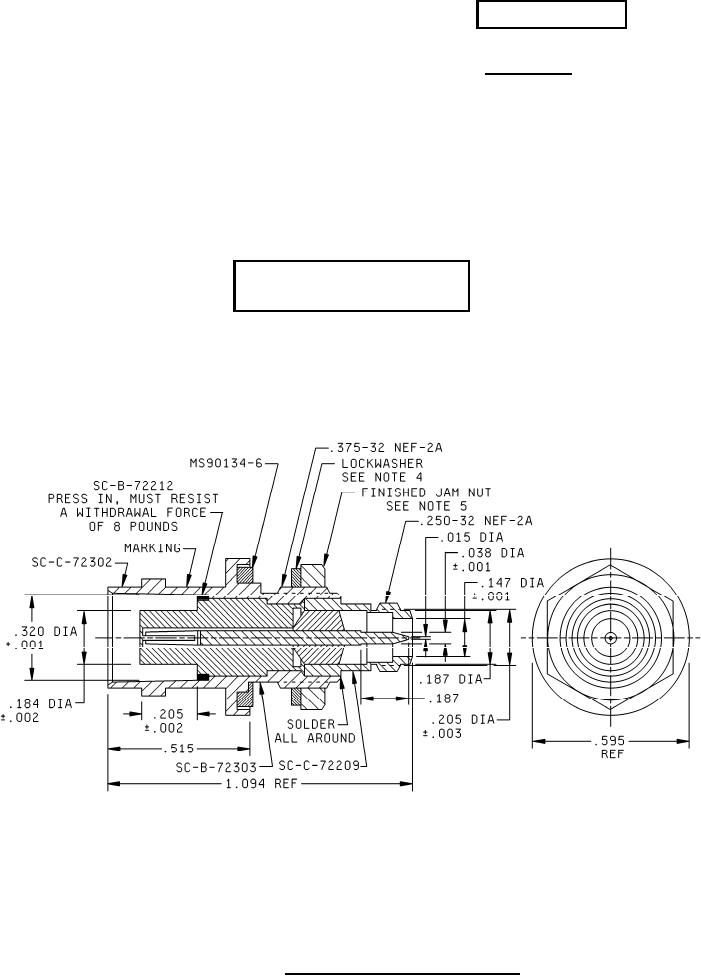

FIGURE 1. Type UG691/U connector adapter.
AMSC N/A
FSC 5935
