INCH-POUND
MIL-DTL-27434/23B
22 May 2008
SUPERSEDING
MIL-A-27434/23A
14 March 1966
DETAIL SPECIFICATION SHEET
ADAPTER, CONNECTOR, COAXIAL, RADIOFREQUENCY,
BETWEEN SERIES, SERIES TWIN to SERIES UHF
TYPE UG-970/U
Inactive for new design after
19 February 1982
This specification is approved for use by all Departments
and Agencies of the Department of Defense
The requirements for acquiring the product described herein
shall consist of this specification sheet and MIL-DTL-27434.
Inches
mm
1.687
42.85
NOTES:
1.500
38.10
1. Dimensions are in inches.
.605
15.37
2. Metric equivalents are given for information only.
.003
0.08

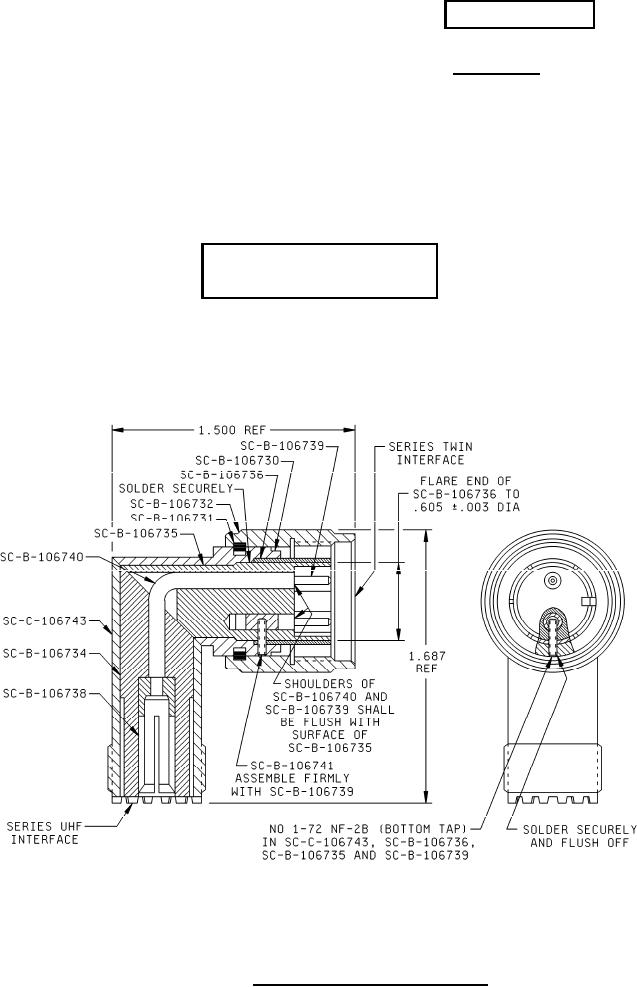

FIGURE 1. Type UG970/U connector adapter.
AMSC N/A
FSC 5935
