MIL-DTL-27434-33 Adapter, Connector, Coaxial, Radiofrequency, Between Series, Type Ug-1146/U \(Series Bnc To Qds\)

Pages 1 - 2 - 3

MIL-DTL-27434/33A

Inches

millimeters

.001

0.02

.002

0.05

.093

2.36

.200

5.08

.288

7.31

.413

10.49

.625

15.87

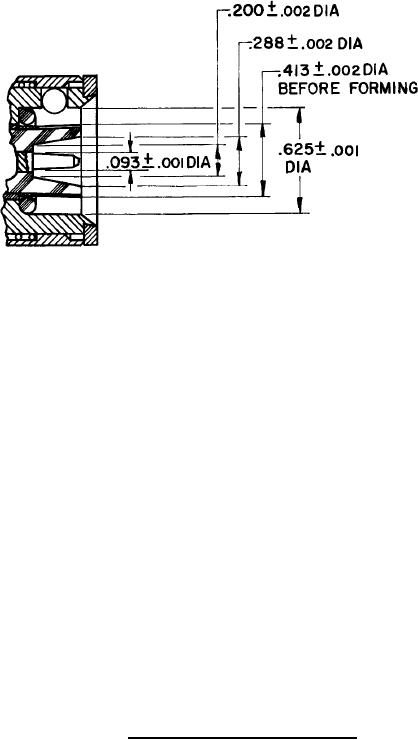

FIGURE 2. Series QDS Pin Contact Interface.

1. All dimensions are I inches.

2. Unless otherwise specified, tolerances are +/- 0.005 inch.
