MIL-DTL-27434/7A

Inches

millimeters

.001

0.02

.188

4.77

1.281

32.53

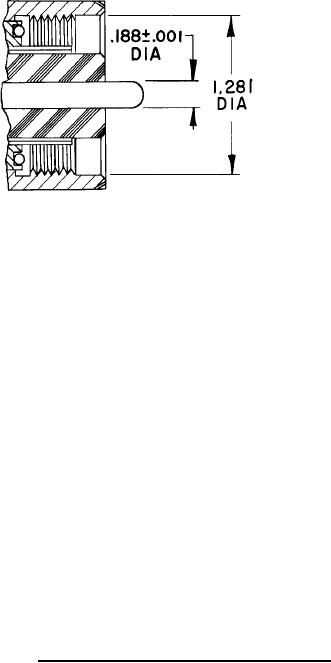

FIGURE 2 Series LC Pin Contact Interface Dimensions.

Notes:

1. All dimensions are in inches.

2. Unless otherwise specified, tolerances are +/- 0.005 inch.
