INCH-POUND
MIL-DTL-28731/24D
15 March 2004
SUPERSEDING
MIL-C-28731/24C
25 May 1984
DETAIL SPECIFICATION SHEET
CONNECTOR, ELECTRICAL, RECTANGULAR SHIELD,
FOR 120 REMOVABLE CONTACTS
This specification is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification sheet and
MIL-DTL-28731.
Inches
mm
3.51
.138
4.17
.164
4.6
.18
11.43
.450
12.32
.485
31.6
1.25
36.32
1.430
42.16
1.660
88.90
3.500
89.71
3.532

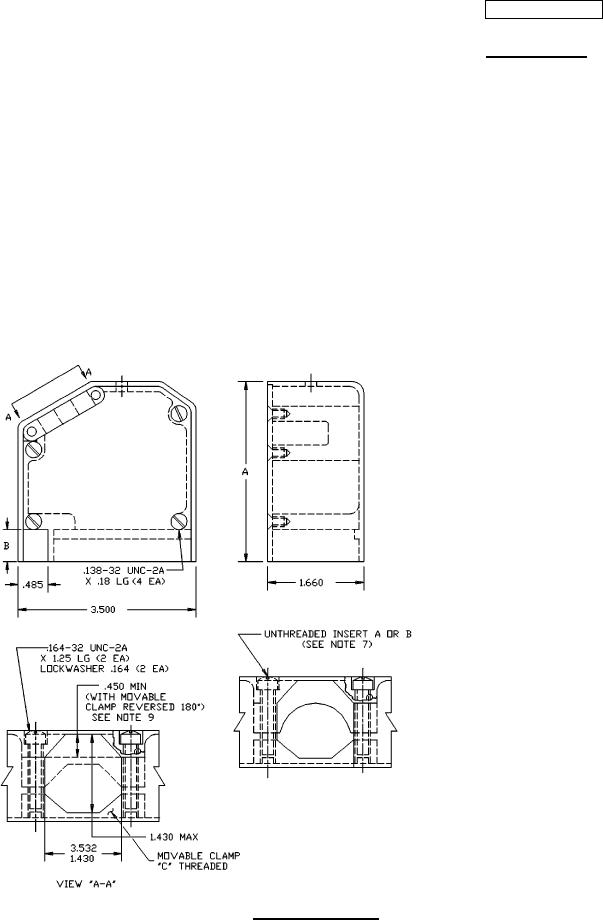

FIGURE 1. Shield, rectangular.
AMSC N/A
FSC 5935
