MIL-DTL-28748/6E
Inches
mm
Inches
mm
Inches
mm
Inches
mm
Inches
mm
.002
0.05
.02
0.5
.110
2.79
.195
4.95
.619
15.72
.003
0.08
.020
0.51
.117
2.97
.234
5.97
.766
19.45
.005
0.13
.062
1.57
.118
3.00
.242
6.15
1.234
31.34
.008
0.20
.075
1.91
.125
3.18
.250
6.35
1.655
42.04
.010
0.25
.09
2.3
.143
3.63
.260
6.60
1.800
45.73
.016
0.41
.093
2.36
.150
3.81
.365
9.72
2.290
58.17
.180
4.57
.383
9.73
2.718
69.04

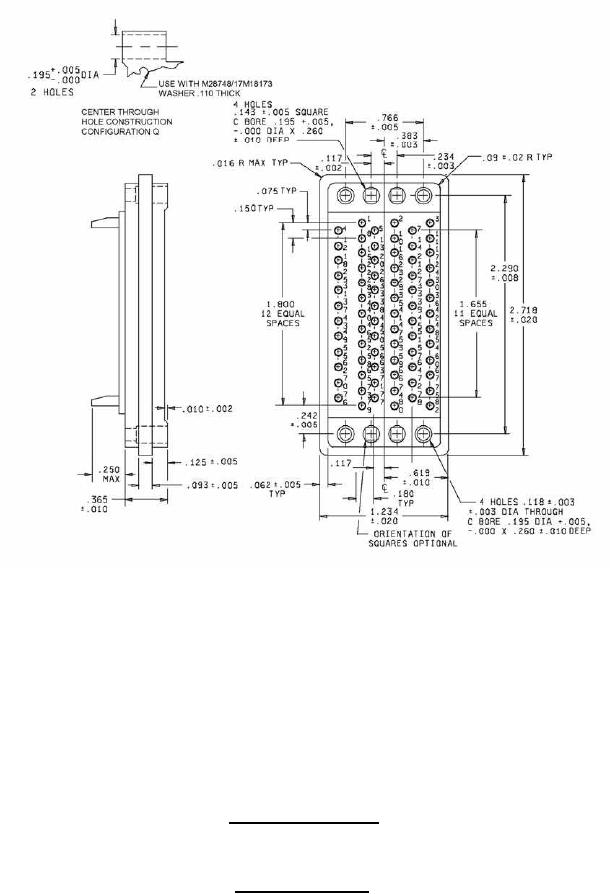

Configuration J - Suitable for all applications, except one-piece jackscrews.
Configuration Q - For long jackscrews and shield only (through hole alternate construction).
Insert with 75 contacts
Insert designators J and Q
FIGURE 2. Insert arrangements - Continued.
11
