MIL-DTL-28840/15E

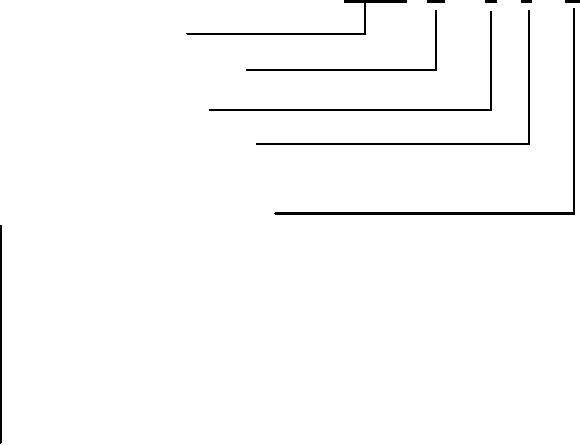

PIN example:
M28840/
15
H
A
W
Military designator
Specification sheet number
Shell size designator
Chain attachment designator
A Link chain with fastener
B Link chain with ring
Material and finish designator
W Aluminum, cadmium plate over electroless nickel
D - Corrosion resistant steel, cadmium plate, black
F - Wrought aluminum, pure electrodeposited aluminum - non-reflective
L - Wrought aluminum, nickel fluorocarbon polymer - non-reflective
S - Wrought aluminum, zinc nickel - non-reflective
N Corrosion resistant steel, nickel fluorocarbon polymer, non-reflective
R Corrosion resistant steel, zinc-nickel, non-reflective
RESTRICTIONS:
Material and finish designators W and D are inactive for NAVSEA new design, unless approved by
NAVSEA.
QUALIFICATION: One protective cover of each shell size for which qualification is desired shall have the
following tests performed in the sequence shown:
Visual and mechanical.
Magnetic permeability.
Shell conductivity.
Corrosion.
Air leakage: Cover shall be mated to suitable connector plug and tested in accordance with test
procedure EIA-364-02. The following details shall apply: The air leakage rate shall not be greater
than one atmospheric cubic inch per hour (4.55 X 10-3 cubic centimeter per second).
Tensile strength: Cover shall be mounted to a suitable fixture to facilitate a 25-pound pull applied at
the rate of 5 pounds per second and held for a period of 5 minutes. The load shall be applied to the
chain end fastener through the center line axis of the protective cover, and then repeated through a
perpendicular axis (90°) from the centerline axis. Chain or fastener breakage, or loosening of the
rivet, shall be considered failures.
Shell conductivity.
Post visual and mechanical.
4
