MIL-DTL-3607/3C
DIMENSIONS
LTR
INCHES
MILLIMETERS
MIN
NOM MAX
MIN
NOM MAX
A
1.508
1.513 38.30
38.40
B
1.281
1.312 1.344 32.54 33.32 34.14
C
.984
1.000 1.031 24.99 25.4
26.19
D
.172
.188
.203
4.37
4.76
5.16
E
.589
.594
.599 14.96 15.09 15.21

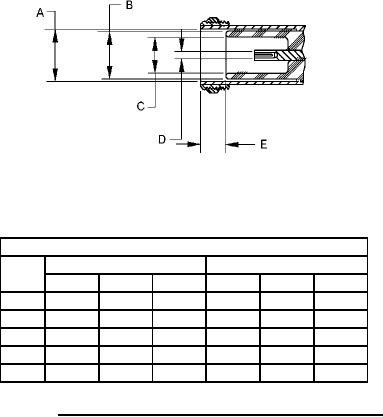

FIGURE 2. Dimensional requirements for group B inspection.
REQUIREMENTS
The electrical plug connector shall be of the design, construction, and physical dimensions specified on
figure 1.
QUALITY ASSURANCE PROVISIONS
Sampling and inspection shall be in accordance with MIL-DTL-3607, and as specified herein.
Group B inspection shall be in accordance with MIL-DTL-3607. Mating dimensions shall be as
specified on figure 2.
Leakage: The leakage test is not applicable.
Dielectric withstanding voltage: The test voltage for the dielectric-withstanding-voltage-test shall be
18,000 volts, root mean square.
Part or Identifying Number (PIN): M3607/3-01
Marginal notations are not used in this revision to identify changes with respect to the previous issue due
to the extent of the changes.
Referenced documents. This document references MIL-DTL-3607.
.
2
