INCH - POUND
MIL-DTL-3607/7B
24 July 2013
SUPERSEDING
MIL-C-3607/7A
2 August 1963
DETAIL SPECIFICATION SHEET
CONNECTOR, PLUG, ELECTRICAL, SERIES PULSE, TYPE UG-180A/U
This specification is approved for use by all Departments and
Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall
consist of this specification sheet and MIL-DTL-3607.
Inches
mm
1.0625
26.988
3.008
76.4032
NOTES:
1. Dimensions are in inches.
2. Unless otherwise specified, tolerances are ±.005 on decimals.
3. Contacts, REA10489 and REA10490, shall have a silver plating of not less than 0.0002 inch thick.
Spring, REA10035-2, and Collar, REA10471, shall not be plated. All other metal parts shall have a
tin plating of not less than 0.0002 inch thick.

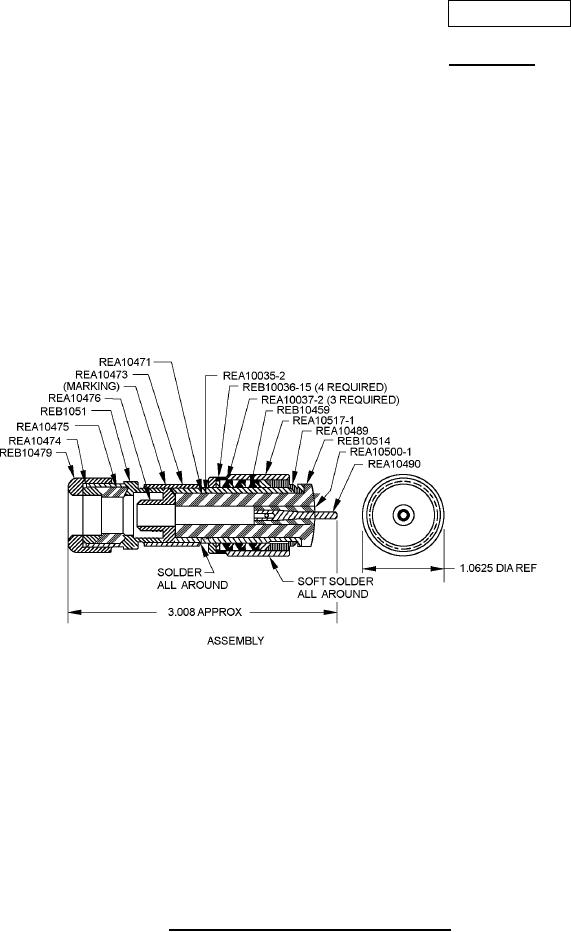

FIGURE 1. Type UG-180A/U electrical plug connector.
AMSC N/A
FSC 5935
