INCH - POUND
MIL-DTL-3643/4B
01 August 2013
SUPERSEDING
MIL-C-3643/4A
14 August 1972
DETAIL SPECIFICATION SHEET
CONNECTOR, ADAPTER, SERIES HN,
TYPE UG-212C/U
Inactive for new design after 14 August 1972.
This specification is approved for use by all Departments and
Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall
consist of this specification sheet and MIL-DTL-3643.
Inches
mm
.671
17.0434
.875
22.225
1.456
36.9824
NOTES

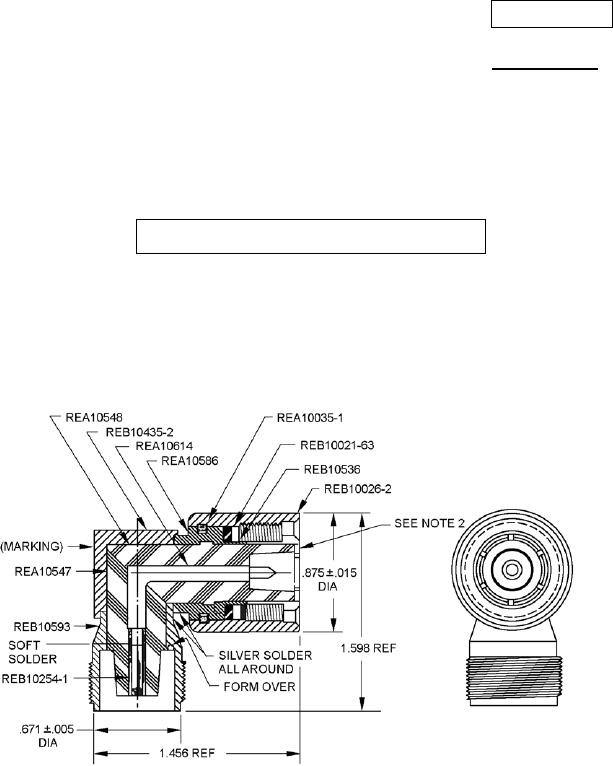

1. Dimensions are in inches. Metric equivalents are given for informational purposes only.
2. Insulator, REA10548, shall be 0.008 (0.2032 mm) min and 0.020 (0.508 mm) max under flush with
end of outer contact,
REB10536.
