MIL-DTL-3655/2C
Inches
mm
Inches mm
.001
0.03
.062 1.57
.002
0.05
.250 6.35
.003
0.08
.533 13.54
.005
0.13
.590 14.99
.015
0.38
.620 15.75
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for information only.

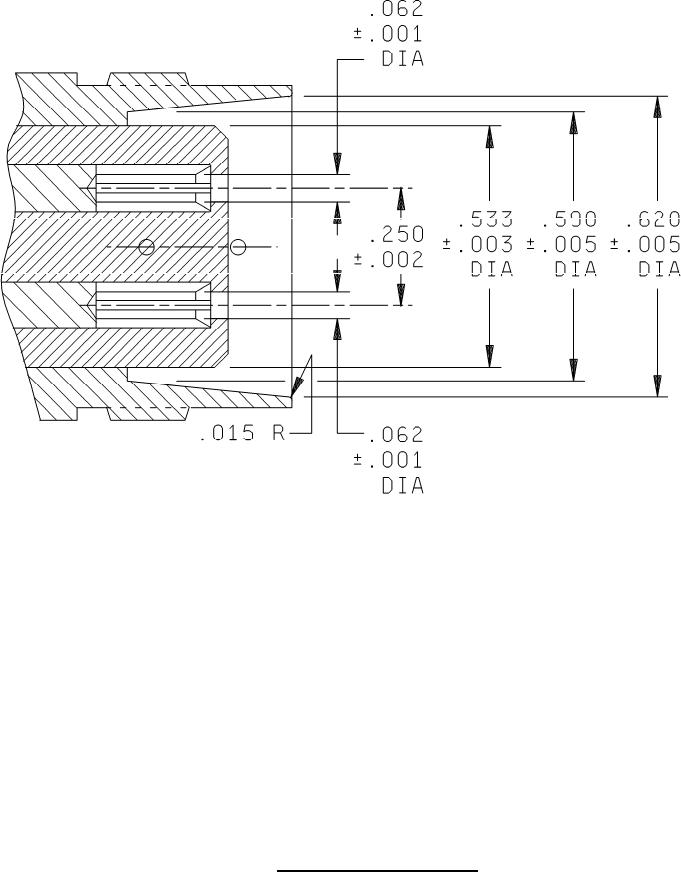

FIGURE 2. Interface mating requirements.
7
