MIL-DTL-38999/46B
REQUIREMENTS:
Dimensions and configurations: See figure 1.
Interface dimensions shall conform to MIL-DTL-38999.
This connector mates with: MIL-DTL-38999/40, /42 and /44.
Main key color: Blue.
For insert arrangements: See MIL-STD-1560.
Class K is not for Air Force use.

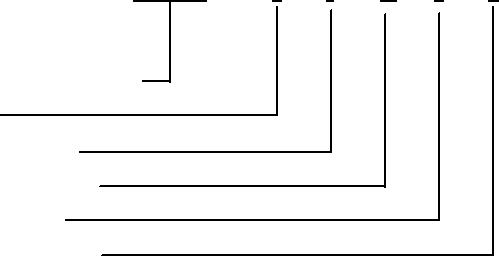

Part or Identifying Number (PIN) example:
F
J
35
P
N
D38999/46
Specification sheet number
Class
Shell size code
Insert arrangement
Contact style
Polarizing position:
N is required for normal position
Coupling rings of class F plugs shall have anodic finish in accordance with MIL-A-8625, type III,
.025 millimeter minimum thickness.
Changes from previous issue. Marginal notations are not used in this revision to identify changes with
respect to the previous issue due to the extent of the changes.
