INCH-POUND
MIL-DTL-39024/18F
22 September 2008
SUPERSEDING
MIL-DTL-39024/18E
3 February 2003
DETAIL SPECIFICATION SHEET
CONNECTORS, ELECTRICAL, TEST POINT TYPE, PRINTED WIRING TYPE;
MICRO-MINIATURE, SINGLE TEST POINT
(2-LEG MOUNTING), LOW VOLTAGE, .080 INCH
This specification is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist
of this specification sheet and MIL-DTL-39024.
Inches
mm
Inches
mm
.001
0.03
.040
1.02
.002
0.05
.052
1.32
.005
0.13
.115
2.92
.008
0.20
.125
3.18
.010
0.25
.187
4.75
.015
0.38
.200
5.08
.020
0.51
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for information only.
3. Mounting to fit .052 (1.32 mm) dia holes (2 holes), and lead spacing shall be such to meet .200 ± .005
mounting hole layout requirements.
4. Dimensions are valid after plating only.

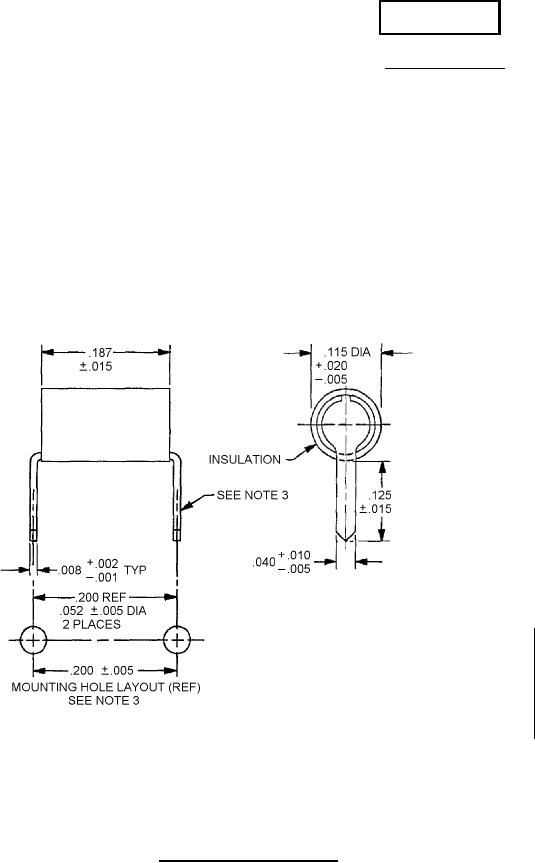

FIGURE 1. Dimensions and configuration.
AMSC N/A
FSC 5935
