MIL-DTL-55074/2B
Inches
mm
.209
5.31
1.125
28.58
1.625
41.28
2.250
57.15
2.500
63.50
3.250
82.55
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Unless otherwise specified, tolerance is ± .015 inch (.38 mm).
4. Marking to appear in area shown. Marking to consist of manufacturer's name or CAGE code,
CONN. RECP. ELEC., U-186C/G (M55074/2), molded in characters approximately .187 inch
(4.75mm) high.
5. This connector mates with MIL-DTL-55074/1 (U-185B/G).
6. Turning connector to left unlocks cover for mating; turning to right locks cover. (See applicable end
view, page 1).
7. See MIL-DTL-55074/4 for contact assembly specifications.
8. M55074/2 represents U-186C/G where applicable in MIL-C-55074.
9. Connector shall be manufactured in accordance with drawing number SC-DL-349780.
10. Connector must conform to the interchangeability requirements of gage number SC-GL-323023.

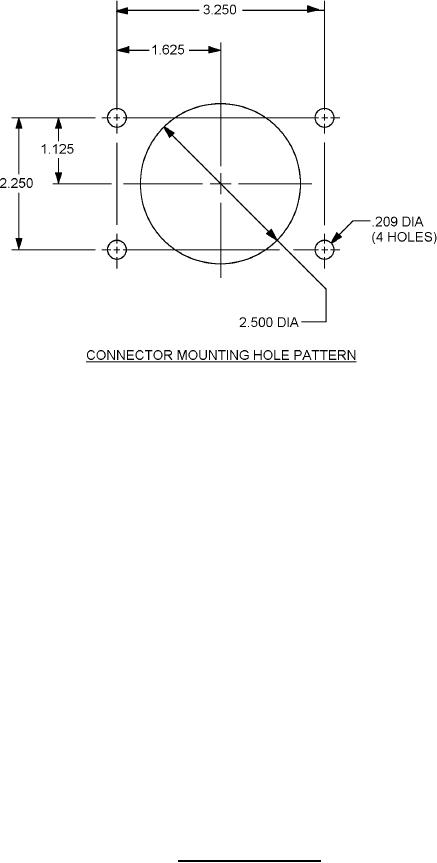

FIGURE 1. Connector receptacle Continued.
2
