INCH-POUND
MIL-DTL-55116/13B
22 March 2004
SUPERSEDING
MIL-C-55116/13A(CR)
2 May 1990
DETAIL SPECIFICATION SHEET
CONNECTOR, RECEPTACLE, FIVE PIN AUDIO, SOLDER CUP
SPRING TERMINALS, WIRE STRAIN RELIEF, U-228 TYPE
This specification is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification sheet and
MIL-DTL-55116.
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Stamp or etch 1/16 gothic characters in accordance with MIL-STD-13231, group 1.

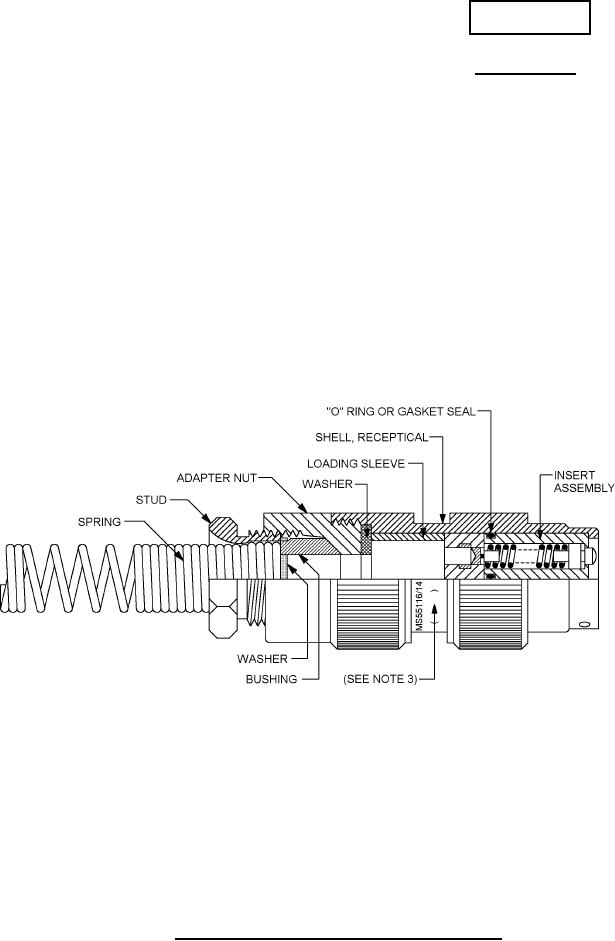

FIGURE 1. Connector, receptacle, five pin audio, U-228 type.
AMSC N/A
FSC 5935
