INCH-POUND
MIL-DTL-55116/8B
22 March 2004
SUPERSEDING
MIL-C-55116/8A(CR)
6 November 1990
DETAIL SPECIFICATION SHEET
CONNECTOR, PLUG, SIX PIN AUDIO, SOLDER CUP TERMINALS,
MOLDED STRAIN RELIEF, U-182 TYPE
This specification is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification sheet and
MIL-DTL-55116.
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Stamp or etch 1/16 gothic characters in accordance with MIL-STD-13231, group 1.

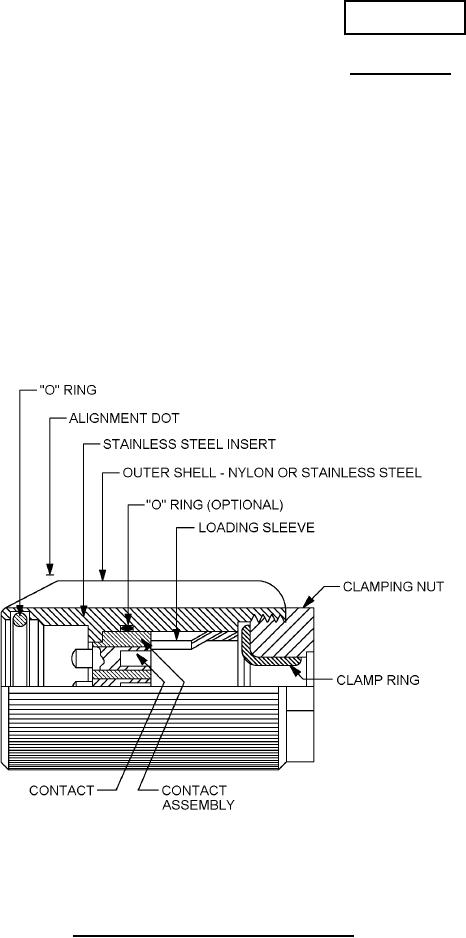

FIGURE 1. Connector, plug, six pin audio, U-182 type.
AMSC N/A
FSC 5935
