MIL-DTL-55116/9C
Inches
mm
Inches
mm
.002
0.05
.217
5.51
.005
0.13
.223
5.66
.007
0.18
.235
5.97
.010
0.25
.265
6.73
.012
0.30
.280
7.11
.015
0.38
.282
7.16
.016
0.41
.445
11.30
.020
0.51
.450
11.43
.027
0.69
.455
11.56
.029
0.74
.456
11.58
.030
0.76
.526
13.36
.037
0.94
.528
13.41
.040
1.02
.549
13.94
.046
1.17
.553
14.05
.050
1.27
.590
14.99
.054
1.37
.594
15.09
.056
1.42
.627
15.93
.058
1.47
.631
16.03
.060
1.52
.640
16.26
.064
1.63
.650
16.51
.065
1.65
.665
16.89
.069
1.75
.675
17.15
.074
1.88
.722
18.34
.075
1.91
.732
18.59
.086
2.18
.740
18.80
.088
2.24
.748
19.00

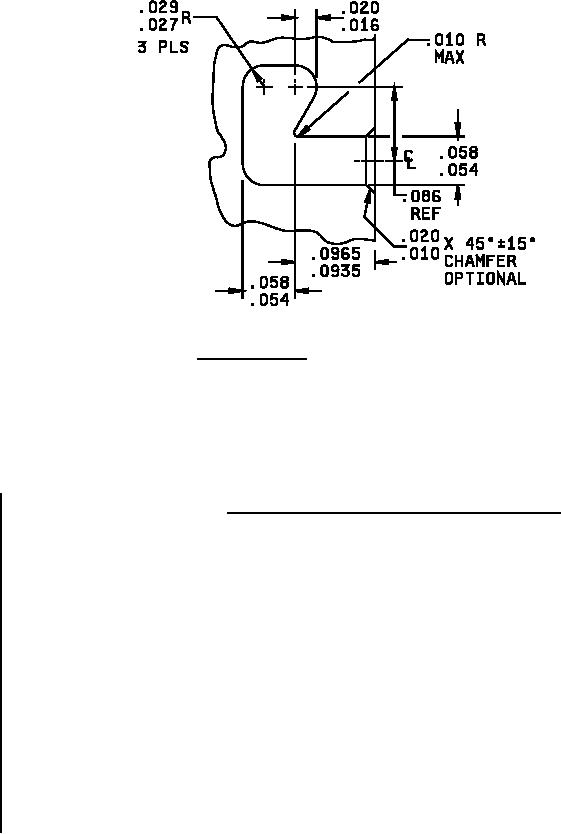

J-SLOT DETAIL (3 PLACES)
.090
2.29
.750
19.05
.0935
2.375
.782
19.86
.0965
2.451
.792
20.12
.100
2.54
.905
22.99
.105
2.67
.915
23.24
.125
3.18
.953
24.21
.135
3.43
.963
24.46
.150
3.81
.97
24.6
.160
4.06
FIGURE 1. Connector, receptacle, five-pin audio, panel mount - Continued.
REQUIREMENTS:
Contact retention: This test is only applicable when force is applied to the terminal end, tending to push
the terminal into the connector body.
Part or Identifying Number (PIN): M55116/9-0.
Dimensions and configuration: See figure 1.
Reference documents. This document references MIL-DTL-55116.
Changes from previous issue. The margins of this specification are marked with vertical lines to indicate
where changes from the previous issue were made. This was done as a convenience only and the
Government assumes no liability whatsoever for any inaccuracies in these notations. Bidders and
contractors are cautioned to evaluate the requirements of this document based on the entire content
irrespective of the marginal notations and relationship to the last previous issue.
3
