MIL-DTL-55302/119H
Inches
mm
Inches
mm
Inches
mm
.001
0.03
.050
1.27
.155
3.94
.004
0.10
.075
1.90
.170
4.32
.005
0.13
.080
2.03
.175
4.44
.006
0.15
.098
2.49
.180
4.57
.008
0.20
.100
2.54
.195
4.95
.010
0.25
.109
2.77
.205
5.21
.015
0.38
.087
2.21
.215
5.46
.018
0.46
.107
2.72
.250
6.35
.025
0.64
.113
2.87
.290
7.37
.035
0.84
.125
3.18
.038
0.97
.150
3.81
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for information only.
3. Unless otherwise specified, tolerances are ±.005 (0.13 mm) and ±2° on angles.
4. These connectors mate with connectors specified in MIL-DTL-55302/117 and MIL-DTL-55302/118.
5. Barrier is not present on 20 through 50 positions.
6. Numbers indicating end positions stamped this side only.

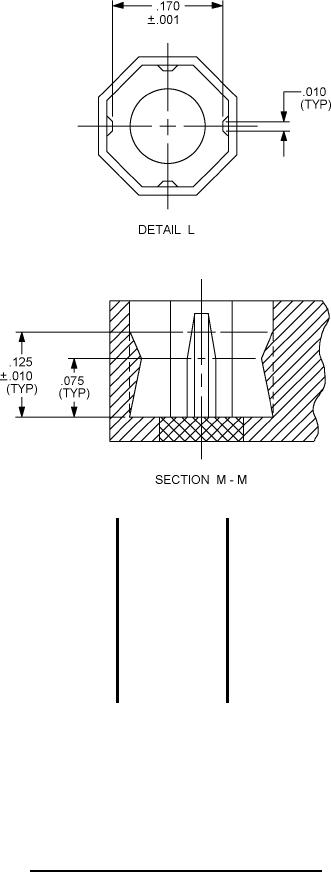

FIGURE 1. Connectors, receptacle, .050 (1.27 mm) spacing - Continued.
3
