MIL-DTL-55302/134B
Inches
mm
.0004
0.010
.002
0.05
.008
0.20
.0220
0.559
.0244
0.620
.031
0.79
.039
0.99
.040
1.02
.197
5.00
NOTES:
1. Dimensions are in inches
2. Metric equivalents are given for information only.
3. Unless otherwise specified, tolerances are ± .008 (0.20 mm) on decimals and 2° on angles.

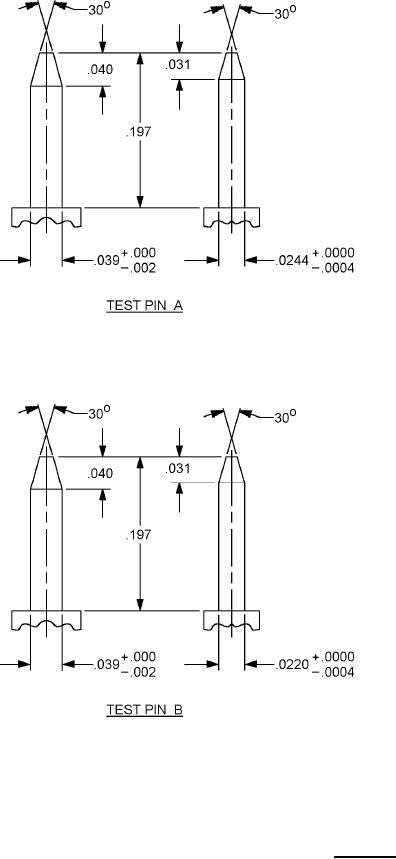

FIGURE 2. Test pins.
