MIL-DTL-55302-148 Connectors, Printed Circuit Subassembly And Accessories, Receptacle With Pin Contacts, 2 Female Keying Guides, 3.917 Inches Length, For Printed Wiring Boards \(.100 Inch Spacing\)

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15 - 16 - 17 - 18 - 19 - 20 - 21

MIL-DTL-55302/148C

Inches

.004

0.10

.374

9.50

.008

0.20

1.711

43.46

.116

2.95

1.800

45.72

.126

3.20

3.422

86.92

.187

4.75

3.600

91.44

.197

5.00

NOTES:

1. Dimensions are in inches.

2. Metric equivalents are given for information only.

3. Unless otherwise specified, tolerance is � .005 (0.13 mm).

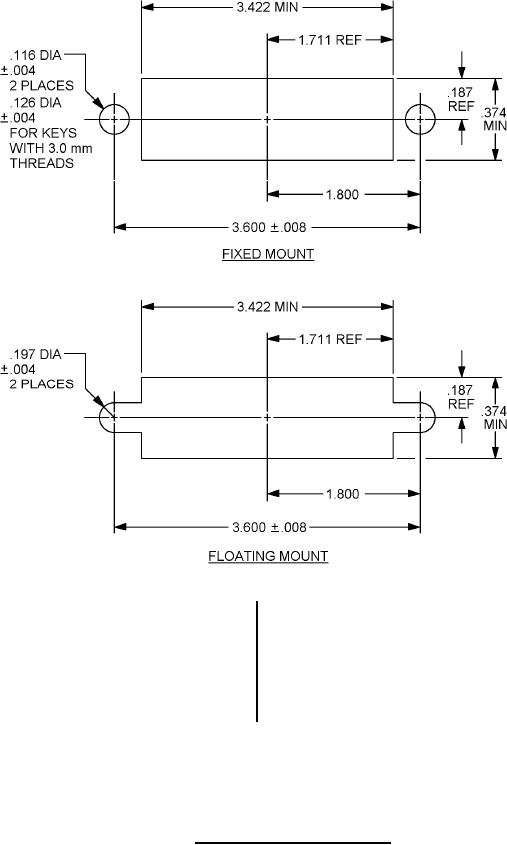

FIGURE 6. Recommended panel cutouts.
